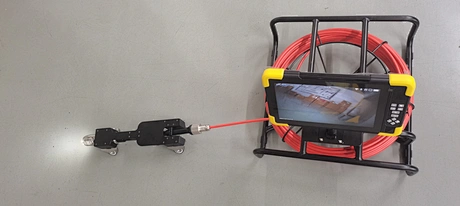

360 Pan Tilt Rotation Sewer Pipeline Camera

PD160-360

minimum order:

1 set

The 360 Pan Tilt Drain Inspection Camera System is a specialized tool designed for efficient and thorough inspections of sewer lines and pipes.

Quantity:

Contact Now

4K Industrial Pipe Inspection System With Meter Counter 360 Degree Rotate Sewer Pipeline Camera With Trolley Wheel

Model No:PD160-360 with Trolley Wheel

(Cable Diameter:7.5mm ,Cable Lengh:30m default)

360 pt drain camera

Product Details of 360 Degree Rotate Sewer Pipeline Camera System PD160-360

drain camera 360

Camera:

*5MP Sony Sensor Resolution:2560*1944px
*View angle:120°view angle
*Light source: 12 LED, brightness is adjustable via monitor
*39mm diameter, total length with spring:280mm

drain camera

10.1inch Touch Screen
* Yellow colors removeable Rubber Corner protectors
*10.1 inch touch screen resolution:1280*800pix,IP66
Video input:HD 4K,2K,1080P,720P, 480P AHD,CVBS video input
Video Output: HDMI 1080P
Support 4K,2K recording;12MP photo and photo notes.
Support 10 times zoom,image flip,inner keyboard to edit photos, playback, file lock with password
Video compression format:H.265
Max Storage: up to 256GB TF card,default 64GB
Compressed video and audio are synchronous
2*6200mAh exchangeable and removeable Li-battery
Support 12 Voltage power output for camera
WiFi Wireless transmission and view on mobile,via APP

drain camera inspection

Camera	Effective resolution	5.0 Mega Pixel, 2560*1440px
	Video output format	AHD
	Video Frane Rate	PAL: 1080P@25FPS, NTSC:1080P@30fps
	Camera Dimension	ø39mm*280mm total length with spring: 280mm
	Light source	12 LED
	Camera Housing	316L stainless steel, sapphire glass
	Lens View angle	120°
	Light source	12 LEDS
	Brightness of the LEDS	Controllable via monitor
Cable	Length	10--60m(optional)
	Material	Glass fiber cable
	Diameter	7.2mm (optional)
Cable Reel	Size	LWH=424220cm
Cable Reel	Brake	With Brake
Recording Monitor	Display	10.1 inch
	Screen Resolution	1280*800 px
	Touch screen	capacitive touch
	Video recording	2K(4:3): 2560x1944@25 /30fps
		2K(16:9): 2560x1440@25 /30fps
	Video input	AHD
	Video format	MP4
	Photo	12MP,8MP,4MP,2MP (JPG)
	Video Output	HDMI 1080P
	Compression mode	H. 265 video compression
	Audio input/output	1.0Vp-p (20Hz-20KHz)
	Speaker Output	1W
	Camera LED Control	PWN
	File System Support	FAT32
	Memory card	TF card 2GB-256GB
	Language	China, English, South Korea, Russia, German, French, Ukrainianetc
	Voltage	DC :12V USB DC:5V
	WiFi Protocol	802.11 a/b
	WiFi Channel	2.4000-2.4835Ghz
	WiFi power	<16dBm
	Power Supply	DC 12V 2.5A
	Lithium battery capacity	6500mAh( 48Wh)
	Maximum charging power	15W
	working hours	6-8 Hours
	Operating temperature	-20℃ to 50℃
	Waterproof grade	IP65
	Size	LWH 30191.8CM
	Weight	870g
Package	Monitor with ABS plastic suitcase	Total size after packing:4745.530cm, G.W:13 KG

Application of 360 Degree Rotate Sewer Pipeline Camera System PD160-360:

It is widely use for blocked,slow draining plumbing,Wall ,wire inspection,Home owners inspection.
