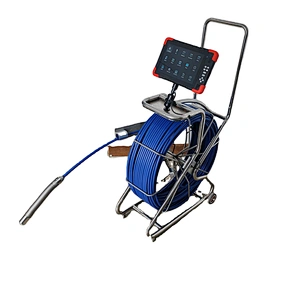

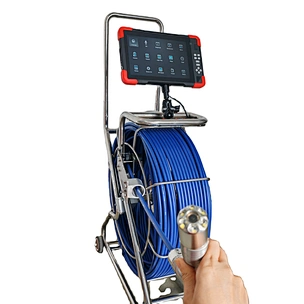

4MP Sewer Pipeline Camera System 100m

Model No:PD200-32

(Cable Diameter:11mm ,Cable Lengh:100m default)

Product Details of 4MP Sewer Pipeline Camera SystemPD200-32

PD200-32Pipe Inspection Camera is a professional sewer camera system that was designed for Contractors and Plumbers to work smarter, get the job done faster, and provide a higher resolution display screen for viewing pipes.

The Push-rod sewer camera is for inspecting the cracks of 40 mm to 150 mm or 200mm to 1000mm pipes for flow dynamics. It comes with a 100 m push cable. The push cable is reinforced with fiberglass and flexible enough to travel through sharp 90° bends, yet stiff enough to push itlongdistances.

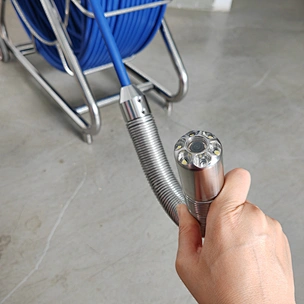

The camera includes a built-in 512hz transmitter that helps locate points inside the underground pipelines . And self-leveling camera head to keep the image always upright.The HDR image sensor expands the camera’s dynamic range, allowing to view more clear when in dark or bright pipes, e.g. stainless steelpipes.

Camera:

*4MP Sony Sensor Resolution:2560*1440px
*View angle:120°view angle
*Light source: 6LED, brightness is adjustable via monitor

*Cable Reel Material: Stainless steel, with brake and meter counter
*Cable material:Glass fiber, Max 100m, Diameter:11.0mm

10.1inch Touch Screen
* Yellow colors removeable Rubber Corner protectors
*10.1 inch touch screen resolution:1280*800pix,IP66
Video input:HD 4K,2K,1080P,720P, 480P AHD,CVBS video input
Video Output: HDMI 1080P
Support 4K,2K recording;12MP photo and photo notes.
Support 10 times zoom,image flip,inner keyboard to edit photos, playback, file lock with password
Video compression format:H.264
Max Storage: up to 256GB TF card,default 64GB
Compressed video and audio are synchronous
2*6200mAh exchangeable and removeable Li-battery
Support 12 Voltage power output for camera
WiFi Wireless transmission and view on mobile,via APP

Application of 4MP Sewer Pipeline Camera SystemPD200-32

It is widely use for blocked,slow draining plumbing,Wall ,wire inspection,Home owners inspection.
