4MP Pipeline Sewer Drain Inspection Camera

PD160-23

minimum order:

1 piece

The 4MP Pipeline Sewer Drain Inspection Camera System is an advanced piece of equipment designed for comprehensive pipeline inspections. It features a robust 23mm 316 stainless steel housing and an adaptable 30m push rod system.

Quantity:

Contact Now

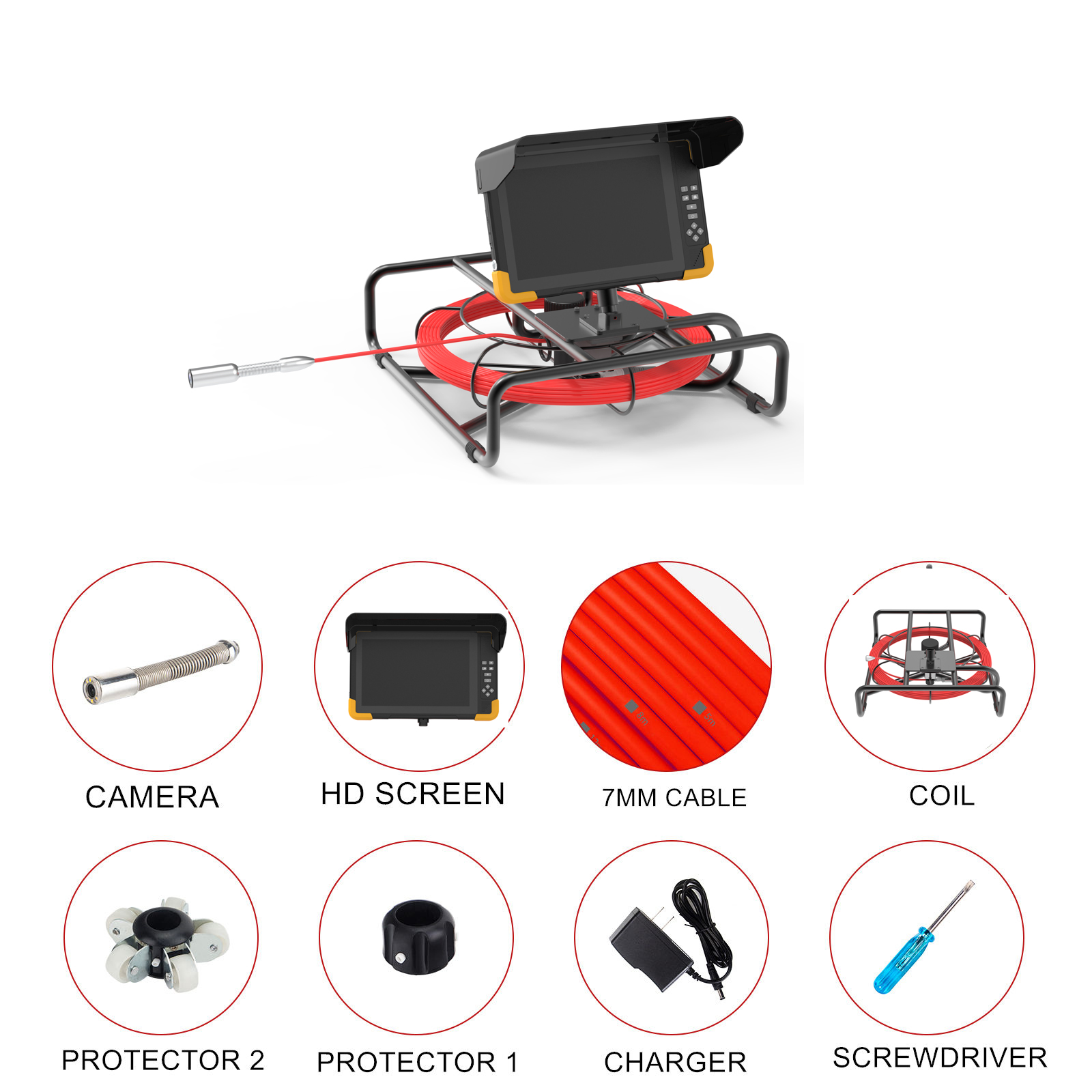

10inch 4K 4MP Pipeline camera 512 location Sewer Drain Inspection Camera System

model: PD160-23

drain camera

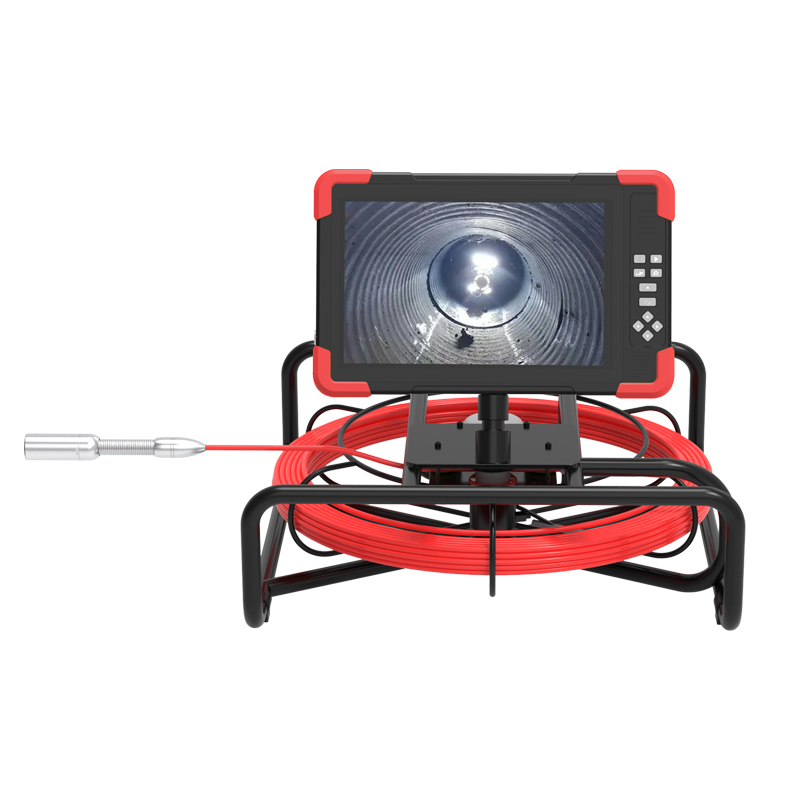

The PD160-23 Sewer Camera System is an advanced drain camera and pipeline inspection solution engineered for plumbing contractors, municipal engineers, and industrial inspectors. Combining a 23mm 316L stainless steel camera with a 30m fiberglass push rod and 10.1"4K touchscreen monitor, this system delivers unmatched clarity and durability for sewer pipe inspections, drain assessments, and underground pipeline diagnostics.

Key Features

✔ 4K HD Sewer Pipe Inspection Camera

4MP ultra-HD resolution (2560*1944) with 120° wide-angle lens
316L stainless steel housing (IP68 waterproof) for corrosive/dirty environments
6 adjustable LEDs + IR night vision (0 Lux visibility)

✔ 30m Industrial-Grade Drain Camera System

Fiberglass push cable with anti-kink technology (30m/98ft standard)
512 programmable location markers for precise defect tracking
Auto-reel with depth counter (±1cm accuracy)

✔ Smart Touchscreen Control

10.1"4K monitor with real-time recording/playback
WiFi connectivity for remote viewing on mobile devices (50m range)
512GB storage (default 128GB)

Technical Specifications

Component	Details
Camera	4MP CMOS, 23mm Ø, 316L stainless
Cable Length	30m fiberglass (98ft), 50m optional
Display	10.1"4K touchscreen (3840×2160)
Lighting	12x LEDs
Storage	512GB microSD (128GB default)
Battery	8-hour runtime

Applications

Residential Plumbing: Locate blockages in sewer lines and drains
Municipal Systems: Inspect stormwater drains and wastewater pipelines
Industrial Pipelines: Assess corrosion in chemical/process pipelines
Commercial Buildings: Diagnose HVAC drain issues and underground utilities

Why Choose the PD160-23 Sewer Camera?

✅ Save 50% Inspection Time: 4K clarity reduces repeat scans
✅ Built to Last: 316L steel resists H2S gas and acidic wastewater
✅ OSHA-Compliant: Eliminates confined space entry risks
✅ Professional Reporting: Generate GIS-mapped inspection logs

Certifications

IP68 waterproof rating
CE, RoHS, and ISO 9001 certified

Camera	Effective resolution	4.0 Mega Pixel, 2560*1440px
	Video output format	AHD
	Video Frane Rate	PAL: 1080P@25FPS, NTSC:1080P@30fps
	Camera Dimension	ø23mm*57mm total length with spring: 133mm
	Light source	12 LED
	Camera Housing	316L stainless steel, sapphire glass
	Lens View angle	180°
	Light source	12 LEDS
	Brightness of the LEDS	Controllable via monitor
Cable	Length	30m(optional)
	Material	Glass fiber cable
	Diameter	7.5mm (optional)
Cable Reel	Size	LWH=424220cm
Cable Reel	Brake	With Brake
Recording Monitor	Display	10.1 inch
	Screen Resolution	1280*800 px
	Touch screen	capacitive touch
	Video recording	2K(4:3): 2560x1944
	Video recording	2K(16:9): 2560x1440
	Video input	AHD
	Video format	MP4
	Photo	12MP,8MP,4MP,2MP (JPG)
	Video Output	HDMI 1080P
	Compression mode	H. 264 video compression
	Audio input/output	1.0Vp-p (20Hz-20KHz)
	Speaker Output	1W
	Camera LED Control	PWN
	File System Support	FAT32
	Memory card	TF card 2GB-256GB
	Language	China, English, South Korea, Russia, German, French, Ukrainianetc
	Voltage	DC :12V USB DC:5V
	WiFi Protocol	802.11 a/b
	WiFi Channel	2.4000-2.4835Ghz
	WiFi power	<16dBm
	Power Supply	DC 12V 2.5A
	Lithium battery capacity	6200mAh( 48Wh)
	Maximum charging power	15W
	working hours	6-8 Hours
	Operating temperature	-20℃ to 50℃
	Waterproof grade	IP65
	Size	LWH 30191.8CM
	Weight	870g

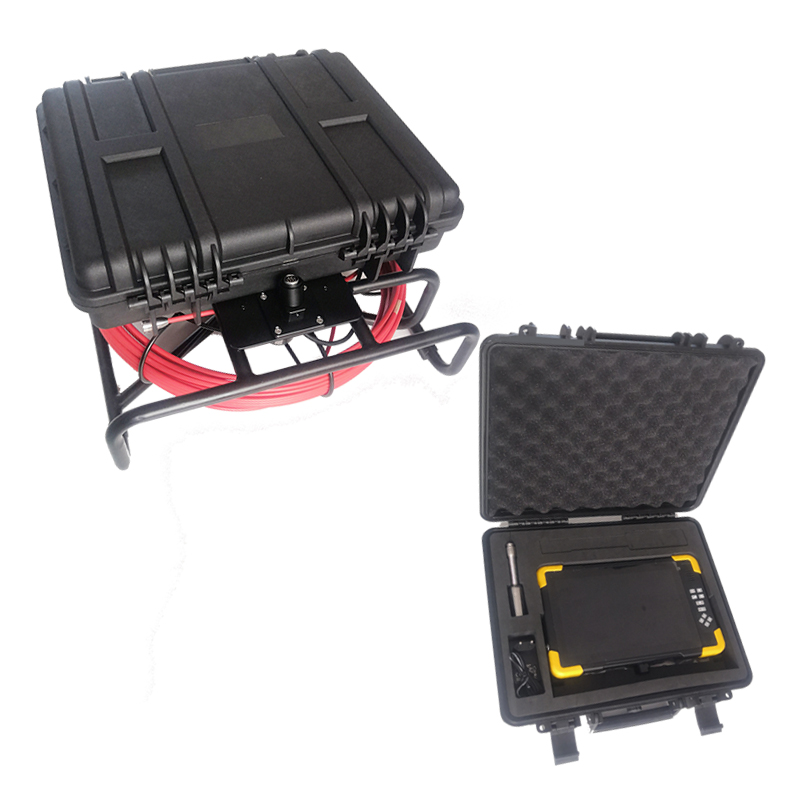

Package	Monitor with ABS plastic suitcase	Total size after packing:4745.530cm, G.W:13KG

10inch 4K 4MP Pipeline cleaning camera 512 location Sewer Drain Inspection Camera System
