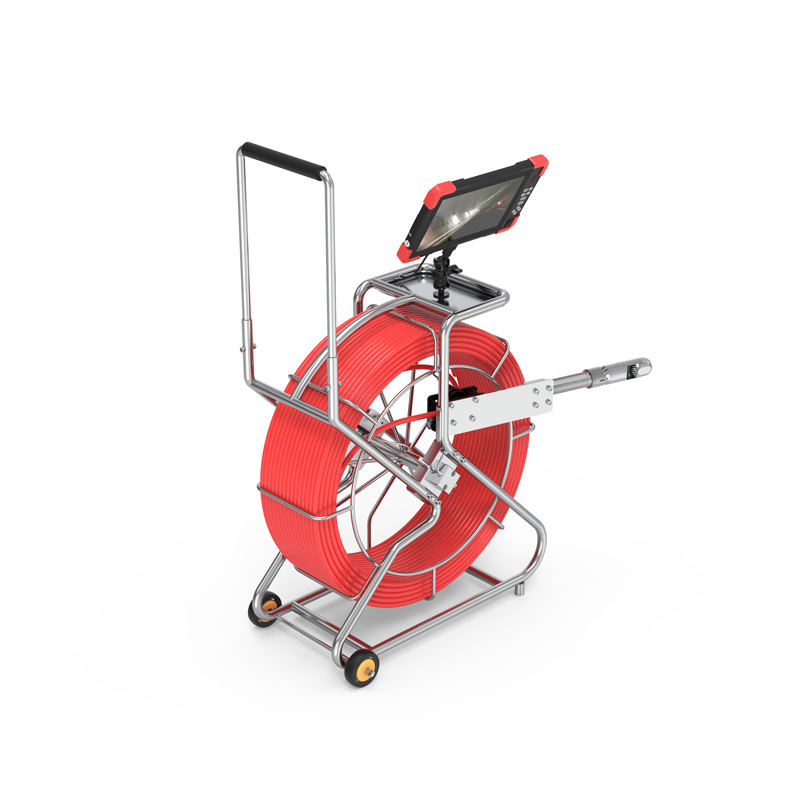

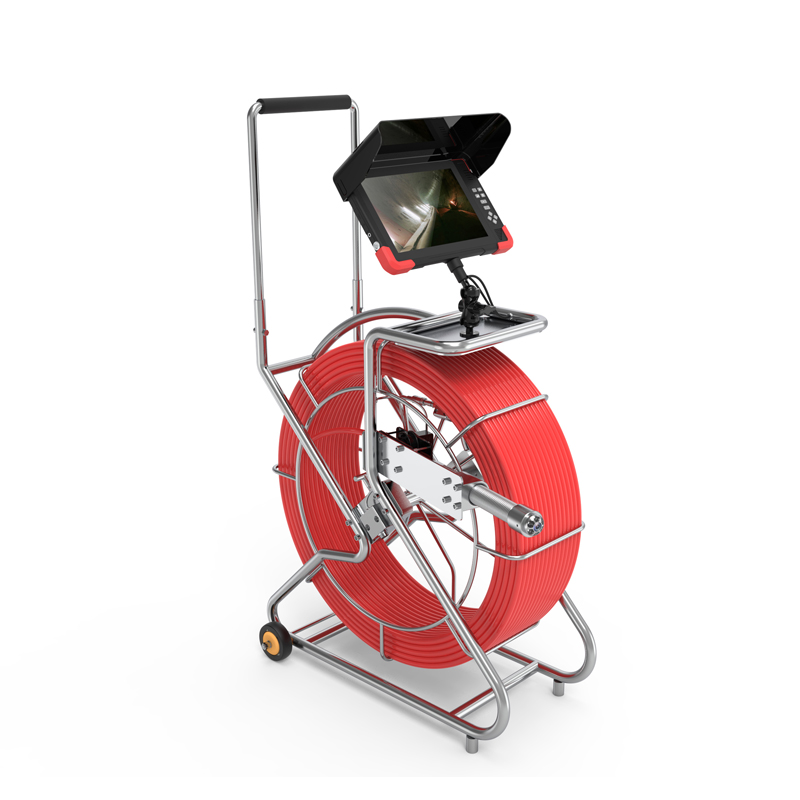

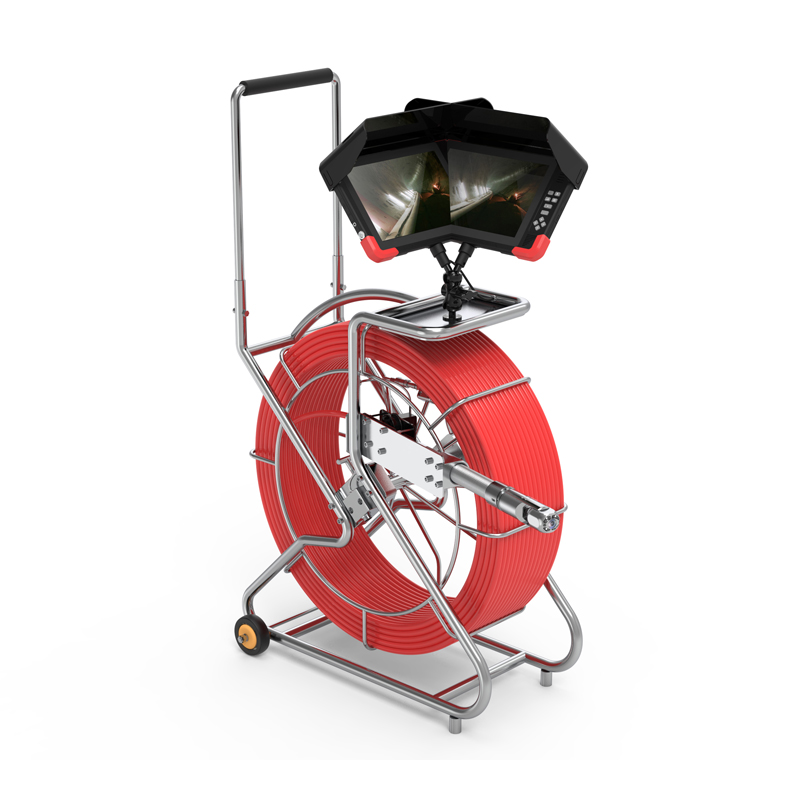

360 Pan Tilt Drain Inspection Camera 100M

PD200-360

minimum order:

1 piece

The 360 Pan Tilt Drain Inspection Camera 100M is a state-of-the-art inspection tool designed for comprehensive pipe diagnostics. Equipped with a 4K ultra-high-definition recording monitor, this device captures crystal-clear images with a resolution of 2560x1440 pixels, ensuring detailed visibility inside pipes.

Quantity:

Contact Now

Portable 360 Pan Tilt Drain Inspection Camera equipment With 100M Push Cable & Recording, SD Memory Card Storage

model: PD200-360

Description of PTZ push rod pipe sewer camera system

PD160-360 PTZ Pipe Inspection Camera is a professional sewer camera system that was designed for Contractors and Plumbers to work smarter, get the job done faster, and provide a higher resolution display screen for viewing pipes.

3rd Eye is the brand you can trust for your daily operations to fulfill your client’s obligations with it’s advanced sewer camera inspection system used for inspecting many of today’s industries, environments and applications that include Residential Plumbing, Municipal Collection Systems, Industrial Pipelines, and other Commercial Applications.

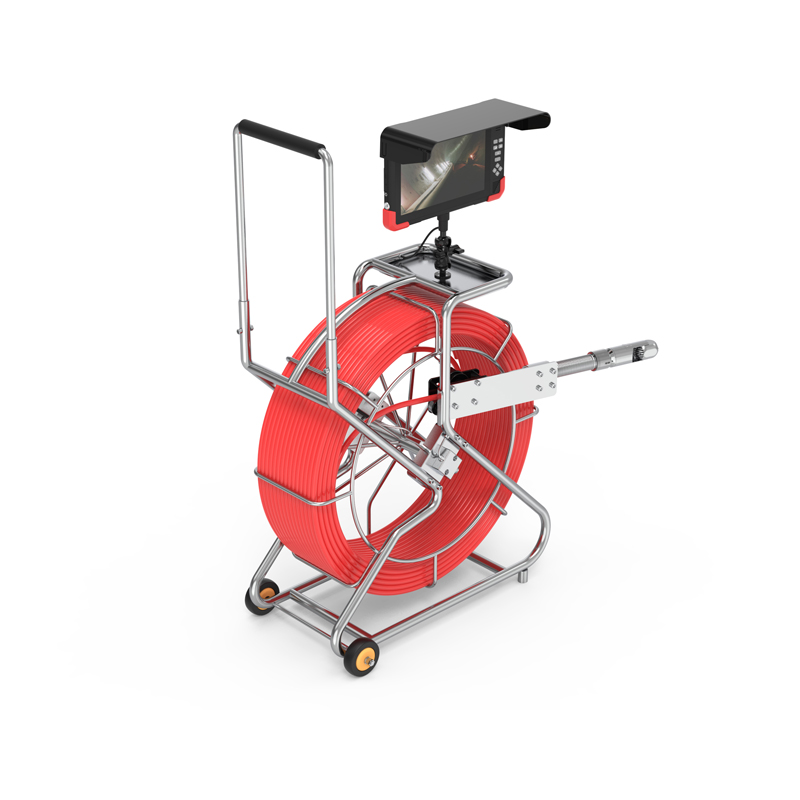

100m drain camera

Portable 360 Pan Tilt Drain Inspection Camera equipment With 100M Push Cable & Recording, SD Memory Card Storage

Selling points:

360 PAN TILT 4MP Drain Camera System with Meter counter, Inner Keyboard for notes
*4MP Sony Sensor Resolution:2560*1440px
*View angle:120°view angle
*Light source: 12 LED, brightness is adjustable via monitor

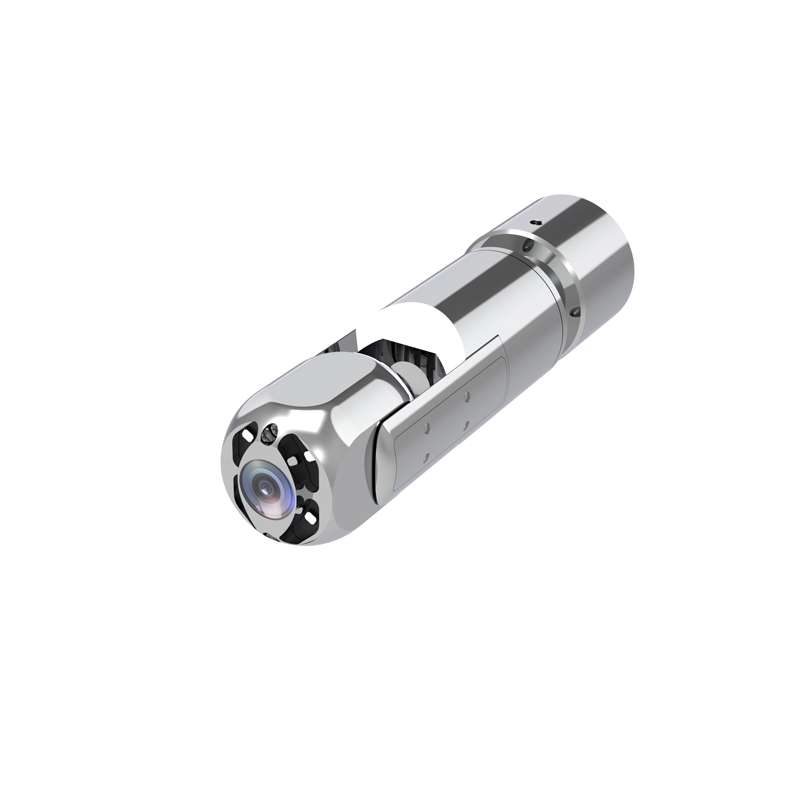

*39mm diameter camera with 2 skids,

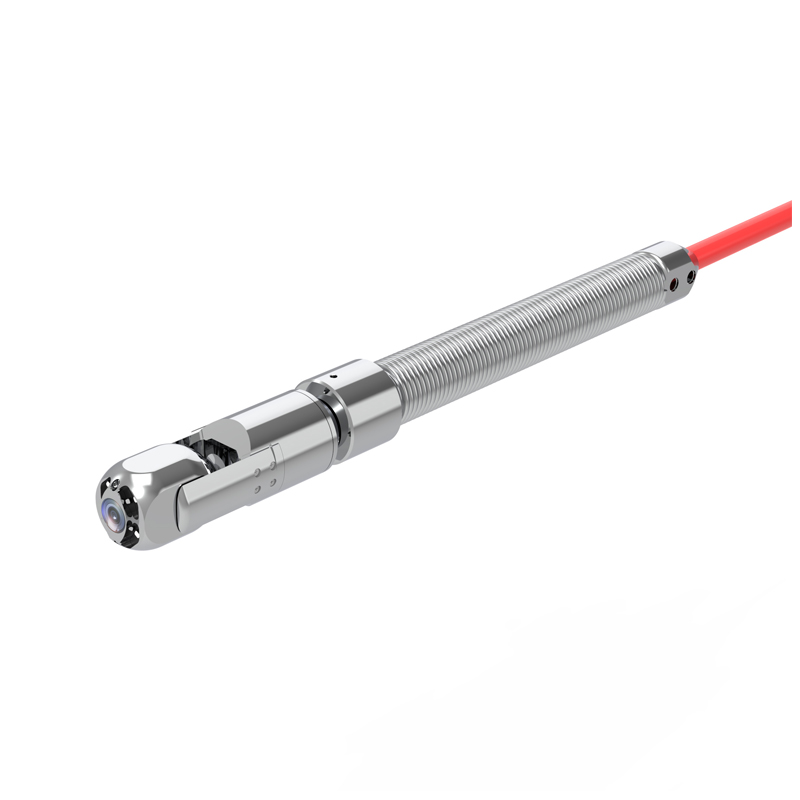

sewer camera

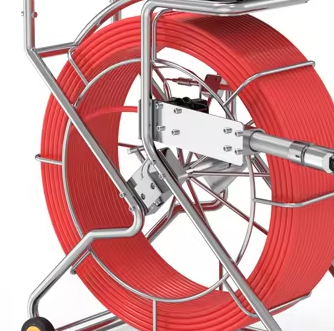

Cable with cable reel

*Cable Reel Material: Stainless steel, with brake and meter counter

* cable length : 100m 11mm Thick strong durable cable

*Monitor bracket: Removeable from the cable reel

pipe camera

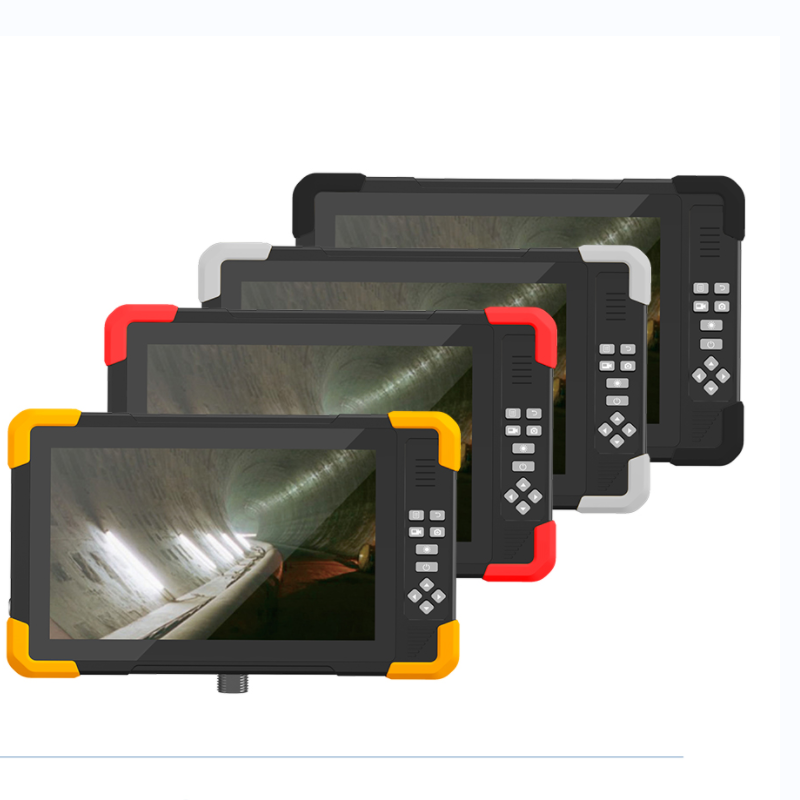

10.1inch touch screen monitor

*Monitor bracket: Removeable from the cable reel
*4colors removable Rubber Corner protectors
*10.1 inch touch screen resolution:1280*800pix,IP66
Video input:HD 4K,2K,1080P,720P, 480P AHD,CVBS video input
Video Output: HDMI 1080P
Support 4K,2K recording;12MP photo and photo notes.
Support 10 times zoom,image flip,inner keyboard to edit photos, playback, file lock with password
Video compression format:H.264
Max Storage: up to 256GB TF card,default 64GB
Compressed video and audio are synchronous
6200mAh exchangeable and removable Li-battery
Support 12 Voltage power output for camera
WiFi Wireless transmission and view on mobile,via APP

pipeline inspection camera

Camera	Effective resolution	4.0 Mega Pixel, 2560*1440px
	Video output format	AHD
	Video Frane Rate	PAL: 1080P@25FPS, NTSC:1080P@30fps
	Camera Dimension	ø39mm total length with spring: 133mm
	Light source	12 LED
	Camera Housing	316L stainless steel, sapphire glass
	Lens View angle	120°
	Light source	12 LEDS
	Brightness of the LEDS	Controllable via monitor
Cable	Length	100m(optional)
	Material	Glass fiber cable
	Diameter	11mm
Cable Reel	Size	LWH=424220cm
Cable Reel	Brake	With Brake
Recording Monitor	Display	10.1 inch
	Screen Resolution	1280*800 px
	Touch screen	capacitive touch
	Video recording	2K(4:3): 2560x1944
	Video recording	2K(16:9): 2560x1440
	Video input	AHD
	Video format	MP4
	Photo	12MP,8MP,4MP,2MP (JPG)
	Video Output	HDMI 1080P
	Compression mode	H. 264 video compression
	Audio input/output	1.0Vp-p (20Hz-20KHz)
	Speaker Output	1W
	Camera LED Control	PWN
	File System Support	FAT32
	Memory card	TF card 2GB-256GB
	Language	China, English, South Korea, Russia, German, French, Ukrainianetc
	Voltage	DC :12V USB DC:5V
	WiFi Protocol	802.11 a/b
	WiFi Channel	2.4000-2.4835Ghz
	WiFi power	<16dBm
	Power Supply	DC 12V 2.5A
	Lithium battery capacity	6200mAh( 48Wh)
	Maximum charging power	15W
	working hours	6-8 Hours
	Operating temperature	-20℃ to 50℃
	Waterproof grade	IP65
	Size	LWH 30191.8CM
	Weight	870g
Package	Monitor with ABS plastic suitcase	Total size after packing:4745.530cm, G.W:13KG
