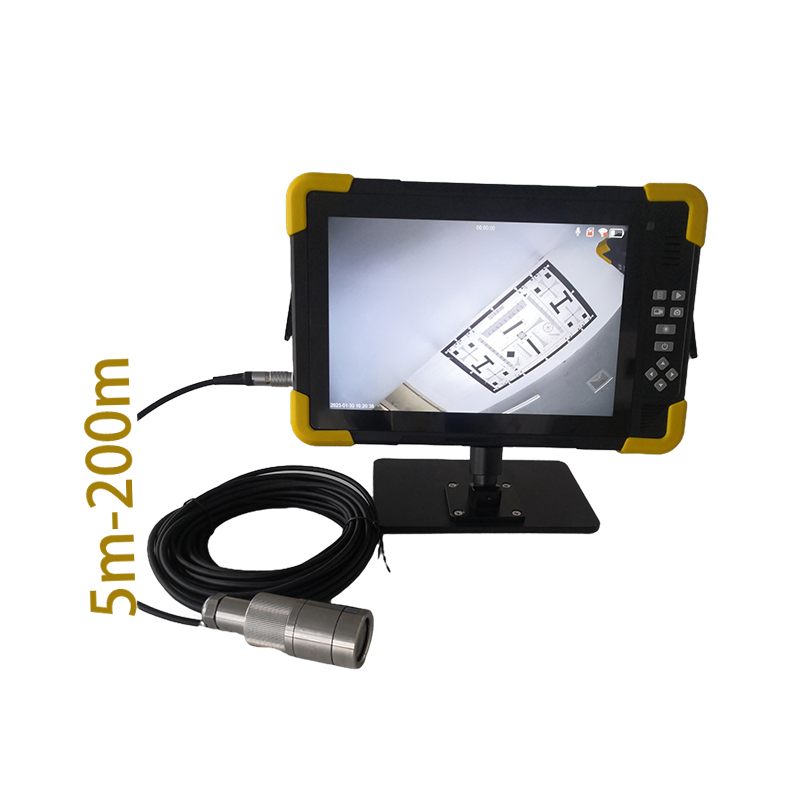

10.1inch 4K HD Monitor 316 Stainless Steel Pipeline Camera with 100M Cable Underwater Drain Well Inspection Video Camera Kit

RD100+M2C3405-100M
minimum order:
1 set
Quantity:
Contact Now
  • Place of Origin:Guangdong, China
  • Brand Name:3rdeye
  • Model Number:RD100+M2C3405-100M
  • Warranty:1 Year, 1 Year
  • Special Features:Waterproof / Weatherproof
  • Sensor:CMOS
  • Style:BULLET CAMERA
  • Function:Waterproof / Weatherproof
  • Video Compression Format:H.264
  • Data Storage Options:DVR
  • Application:Outdoor
  • Customized support:OEM, ODM
  • Product name:Underwater Drain Well Inspection Video Camera Kit
  • Resolution:2556*1440px
  • Image Sensor:CMOS
  • view angle:120 degree
  • Force distance:5cm-100cm
  • Monitor Size:10.1inch
  • camera size:34*97mm
  • waterproof rate:IP68
  • Light source:12 led is adjustable via monitor

Product Description



10.1inch 4K HD Monitior 316 Stainless Steel Pipeline camera with 100m cable Underwater Drain Well Inspection Video Camera Kit

Item:RD100+M2C3405-100M

Selling Points

1) 5MP HD-AHD 316L stainless steel sony camera，12 pcsLED 8-grade brighness controlled by monitor

2) 0.0001Lux/F1.2 ensures clear image under water

3) The camera can withstand 200m waterpressure Cold-resistant, waterproof and pull-resistant black cable.

4)10.1 inch touch screen color monitor 1280*800 pixel. with sunvisor

5) Record Support recording, photo ,Playback , 10 times Zoom, mirror, baseline,edit photos wifi transmit

6) Max 256GB TF card supported, Default 64GB card






Details Images

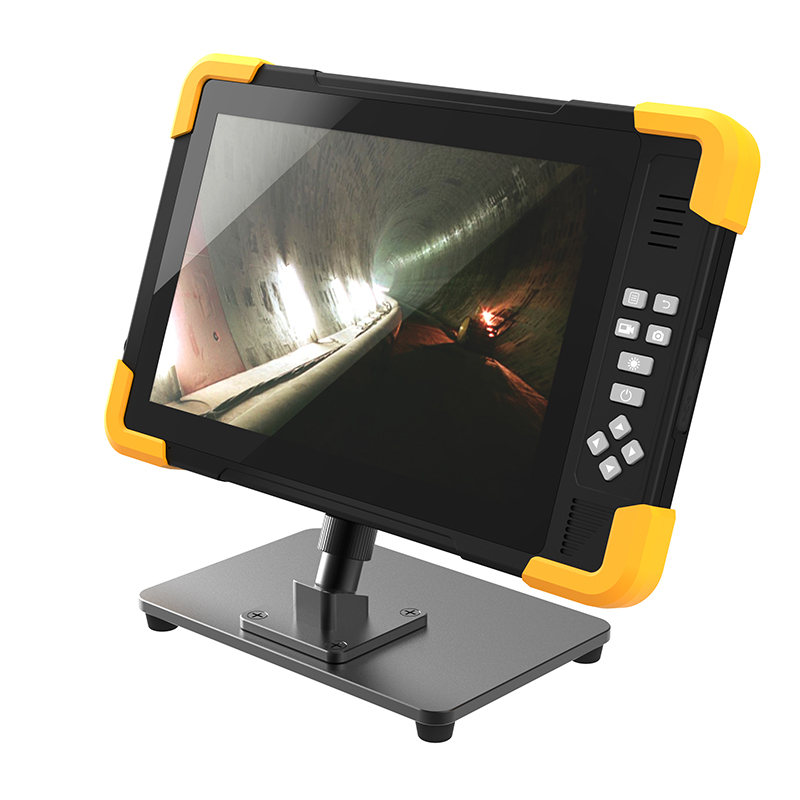

10.1inch Monitor
10.1 inch full view(1280*800pix) IPS Touch screen
Touch screen and buttons both work
Video input:AHD 4K,2K,1080P,720P ,CVBS video input
Video Output: HDMI 1080P
Support 4K,2K,1080P Record, photo, playback,10 times zoom
Video compression format:H.265
Max Storage: up to 256GB TF card
Compressed video and audio are synchronous
Built-in 6500mAh high capacity Li-battery, Battery is exchangeable
Support WiFi to view via mobile

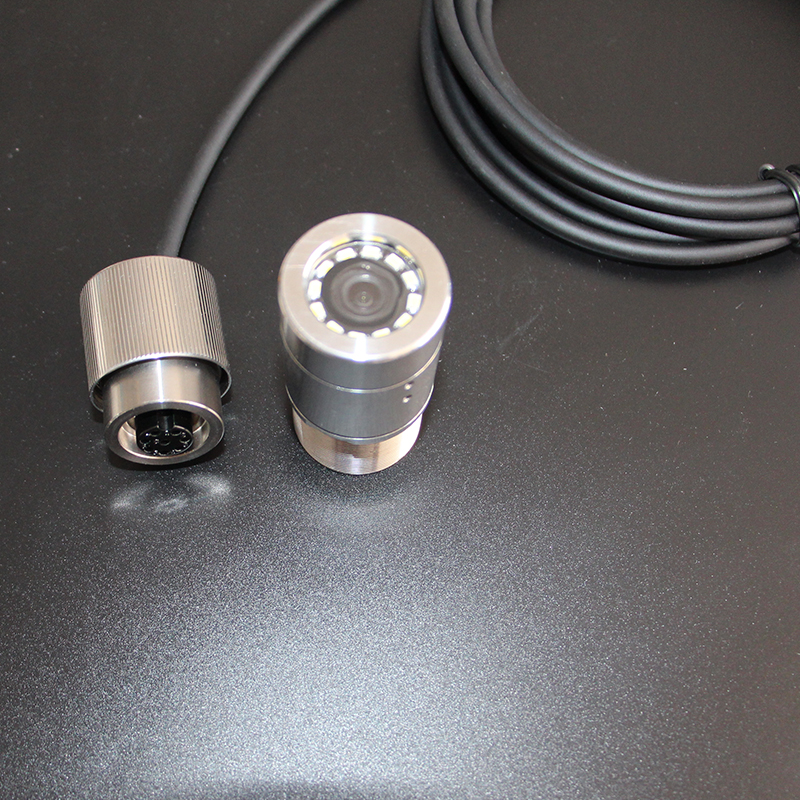

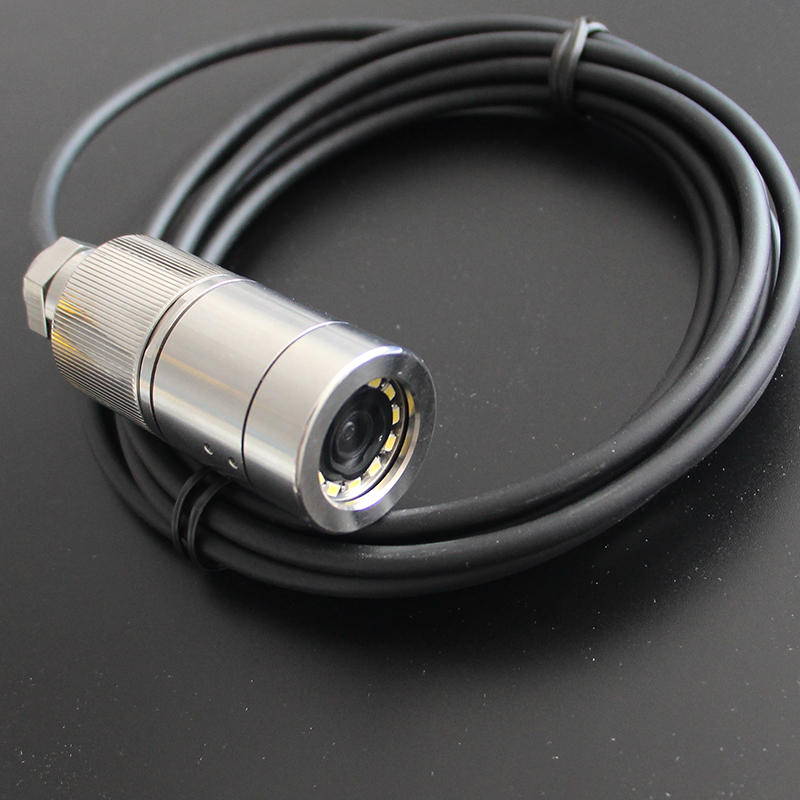

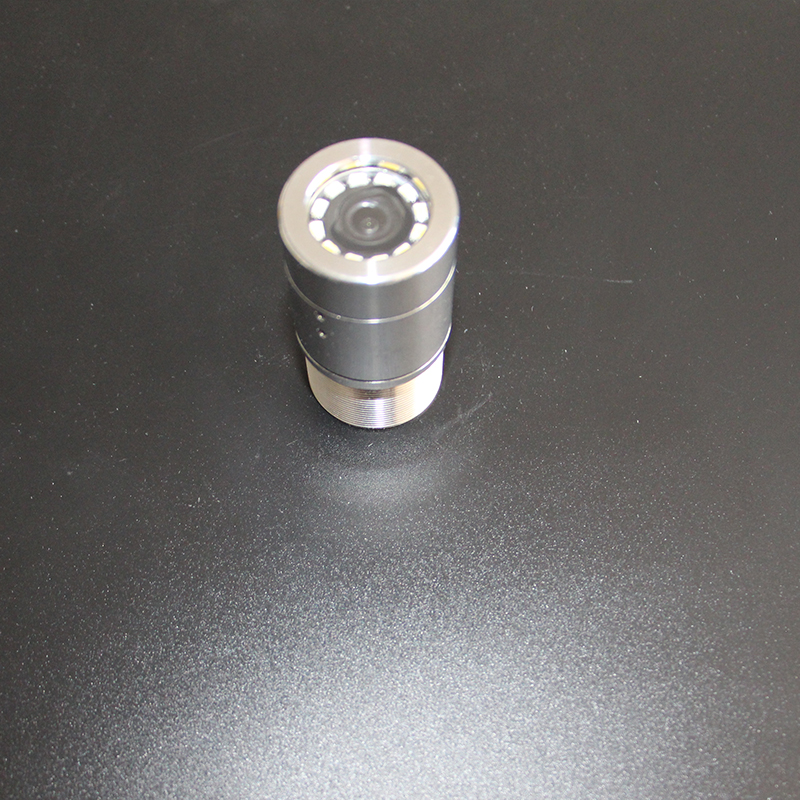

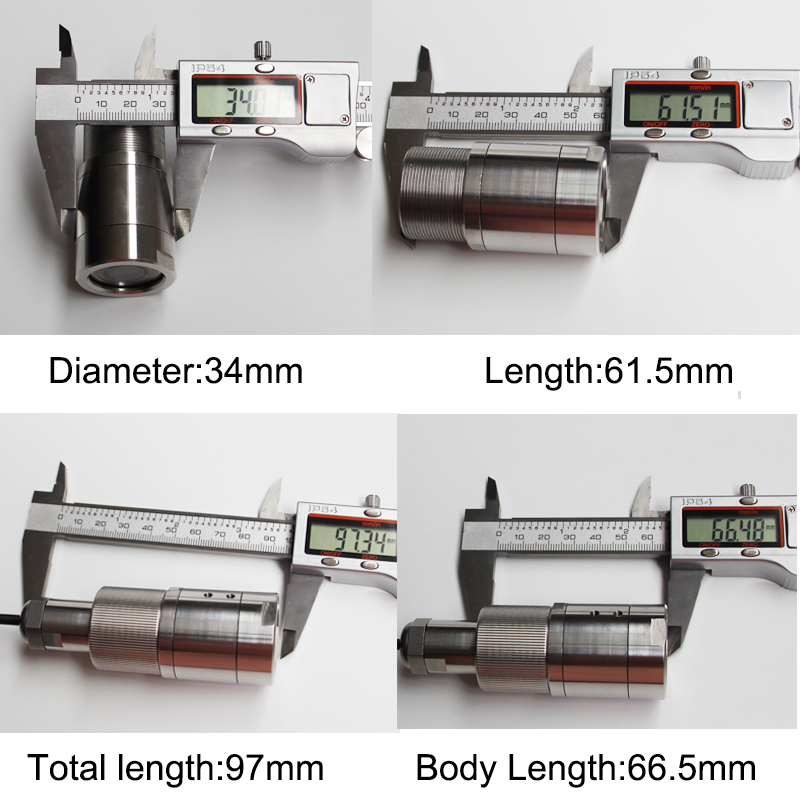

Camera Size:




amera Sensor
5MP 2560*1440px
Camera Size
D:34*61.5mm
Light Source
12 LED or IR850nm ir940nm invisible ir
View angle
2.8mm Fov(D):120 degree
Camera Housing
316L stainless steel
Camera waterproof Rate
IP68
Working depth
Max 200m
Pressure
20 bar
Cable lenght
100m cable  5.0mm diameter
Display
10.1 inch
Screen Resolution
1280*800 px
Touch screen
capacitive touch
Video recording
4K(16:9): 3840x2160@25 /30fps
2K(4:3): 2560x1944@25 /30fps
2K(16:9): 2560x1440@25 /30fps
1080p(16:9): 1920X1080@25 /30fps
Video input
1080P 25fps,1080P 30fps,720P 25fps,
720P 30fps,CVBS pal, CVBS ntsc
Video format
MP4
12MP、8MP、4MP、2MP (JPG)
Video Output
HDMI 1080P
Compression mode
H. 265 video compression
Audio input/output
1.0Vp-p (20Hz-20KHz)
Speaker Output
1W
Camera LED Control
PWN
File System Support
FAT32
Memory card
TF card 2GB-256GB
Language
China, English, South Korea, Russia, etc
Voltage
DC :12V USB DC:5V
WiFi Protocol
802.11 a/b
WiFi Channel
2.4000-2.4835Ghz
WiFi power
<16dBm
Power Supply
DC 12V 2.5A
Lithium battery capacity
6500mAh( 48Wh)
Maximum charging power
15W
working hours
6-8 Hours
Operating temperature
-20℃ to 50℃
Waterproof grade
IP65
Size
L*W*H 30*19*1.8CM
Weight
870g


Application:

it widely use for fishing Aquaculture, commercial diving, Education & research, Hydro electric, Marine construction, Swimming,training, underwater monitoring , underwater security and rescue, water well inspection and so on
