IP68 Water Resistant Sewer Pipeline Drainage Snake Camera with Infrared Night Vision

D2C2302

minimum order:

1 piece

Quantity:

Contact Now

Place of Origin:Guangdong, China
Brand Name:3rdeye
Model Number:D2C2302
Warranty:1 Year
Special Features:Vandal-proof, Waterproof / Weatherproof
Sensor:CMOS
Style:BULLET CAMERA
Function:Waterproof / Weatherproof, Deep water security
Video Compression Format:H.264
Data Storage Options:NA
Application:Outdoor, Indoor
Customized support:OEM, ODM
item name:Underwater fishing Camera
Waterproof:IP68
camera size:D:23*57mm
housing material:316L stainless steel housing
Resolution:1920*1080px
Image Sensor:2MP sony imager sensor
Lens& view angle:140degree
HD video output:default AHD (CVBS for option)
min. illumination:0.0001Lux

Product Description

Robust Waterproof Design - The drain camera is built to withstand up to 50 meters of water pressure to handle even the deeper pipeline inspections.

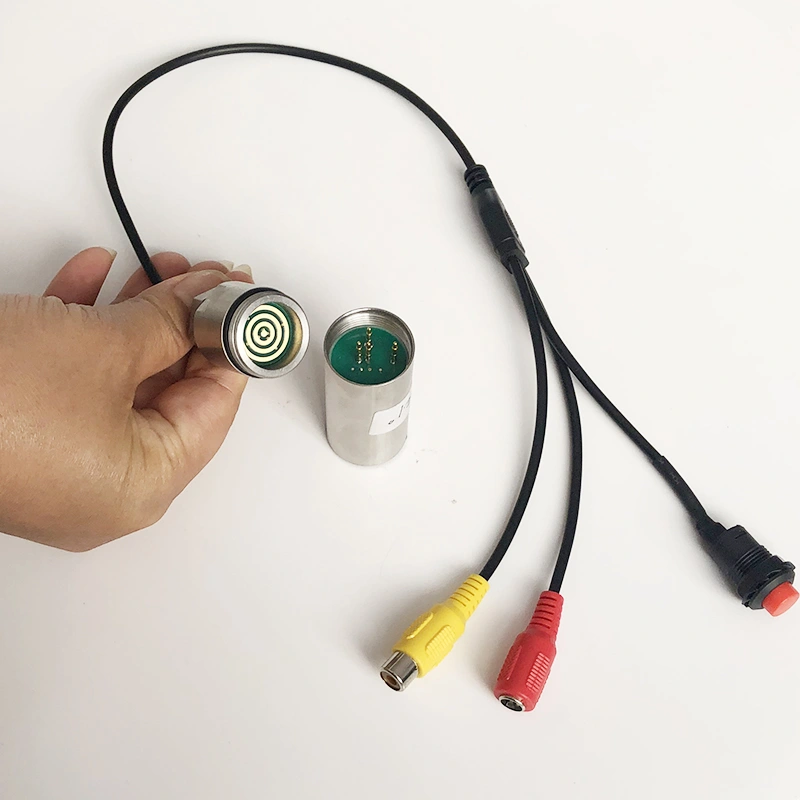

pin connection structure and interchangeable cables provide maximum flexibility for accessing various
pipeline deepths requirement

High-Resolution Imaging - A 2MP high-sensitivity SONY image sensor delivers vivid 1920x1080 full HD resolution.
The 140-degree sapphire glass lens, with its 0.0001Lux minimal illumination, captures detail in even the dimmest environments.
Superior Low Light Visibility - 12adjustable LED lights surrounding the camera head, combined with the low Lux image sensor, provide bright illumination for inspections in dark, unlit pipes with zero ambient light.

Durable, Weather-Resistant Housing - The drain camera is encased in Anti -corrosion 316 stainless steel housing to withstand corrosive elements, impacts and weather exposure during demanding job site usage and transportation. Customizable Cable Lengths - Cables are available in 0.5meter up to 200 meter lengths to suit varied depth and distance needs. Longer cable lengths do require additional costs due to more materials and resources required per project specifications.

Camera Sensor	2MP 1920*1080px
Camera Size	D:23*57mm
Light Source	12 LED or IR850nm ir940nm invisible ir
View angle	2.8mm Fov(D):140 degree
Camera Housing	316L stainless steel
Camera waterproof Rate	IP68
Working depth	Max 200m
Pressure	20 bar
Cable lenght	Default 0.5m, max 200m need to pay extra

Details Images

Double waterproof design, Special for deep water , Max 200m deep waterpressure

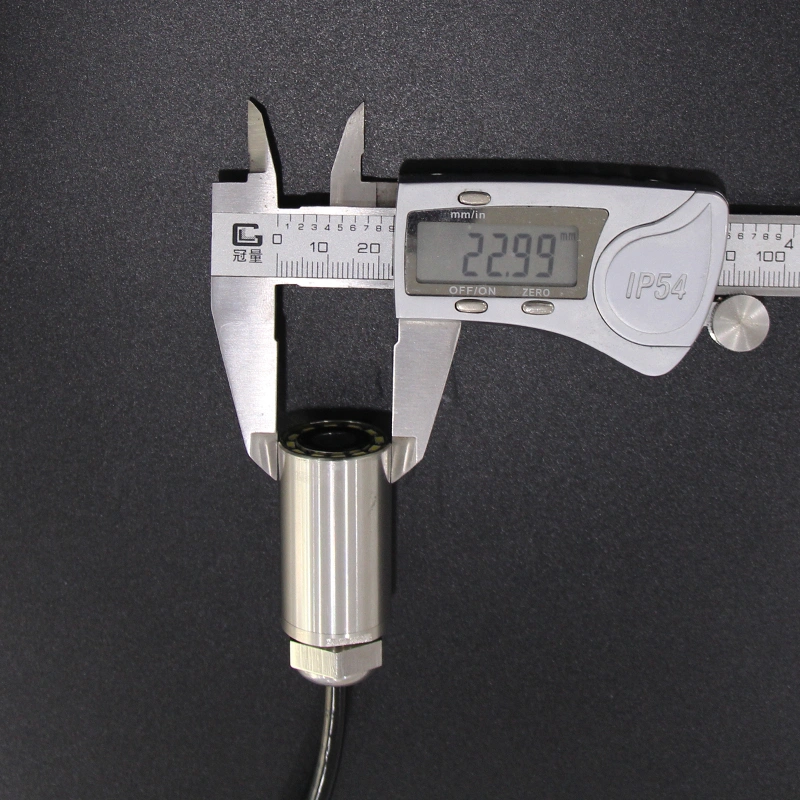

Diameter:23mm

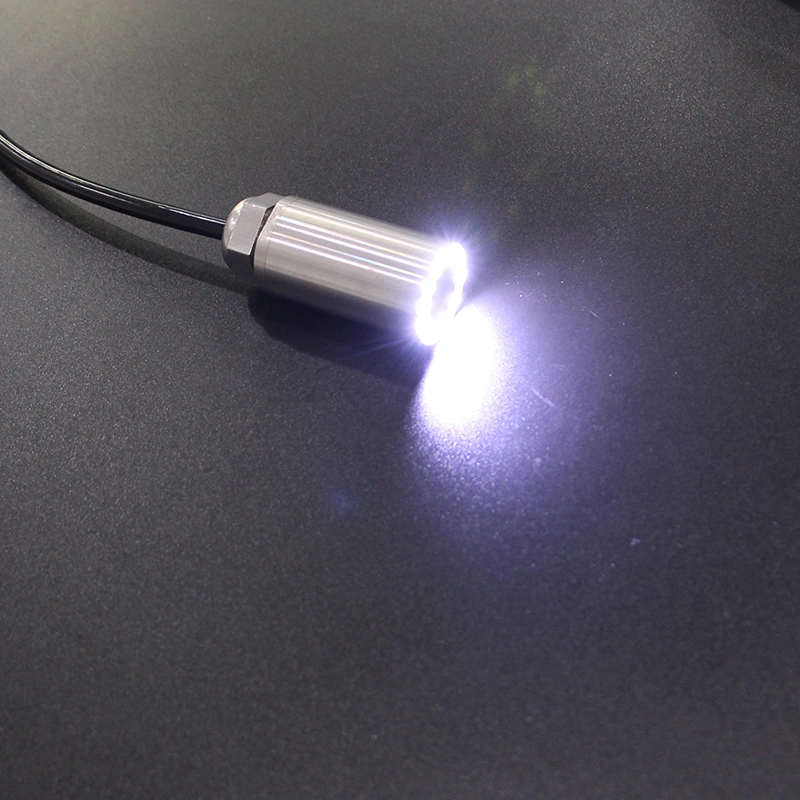

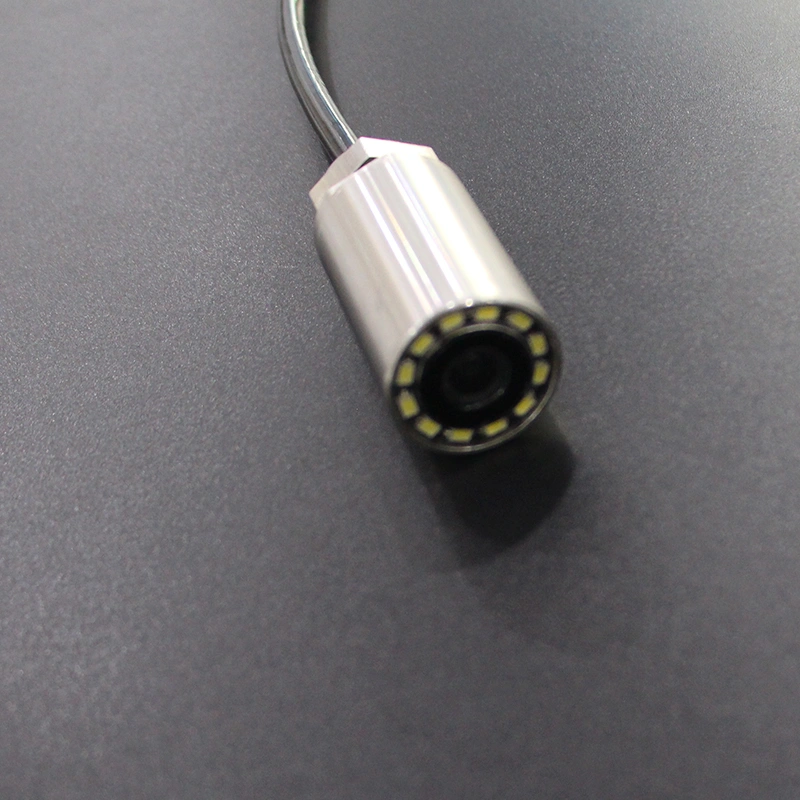

12PCS High light LED

Anti -corrosion 316L stainless steel housing,

Product Usage

This advanced drain camera offers significant benefits to professional plumbers, pipeline inspectors and contractors. Its robust, waterproof design and interchangeable cables provide access to pipes ranging from small diameters up to wide industrial drains, enabling you to service more clients across residential, commercial and municipal locations.
High-resolution imaging including an integrated 140-degree lens captures details as fine as 0.0001 Lux to give technicians a clear view of pipe interiors , including tight bends and T-sections. 12 adjustable LEDs illuminate dark, unlit pipes when zero ambient light is present.
Durable 316 stainless steel housing protects the camera and lens assembly in harsh, corrosive environments and demanding usage, providing maximum value and equipment life. Customizable cable lengths up to 200 meters suit the depth and reach needs of each application, preventing the high costs of abandoning shorter-length cameras that can’t access longer pipeline runs.
Uses include identifying pipe blockages, sediment buildup, tree root infiltration or structural damage for routine maintenance or emergency services. Easily locate the source of leaking or burst pipes under floors, behind walls or beneath infrastructure to minimize repair and renovation costs. Inspect new pipeline installations to ensure proper joint sealing, slope drainage and clearance before putting into operation.
This industrial drain camera enables faster diagnosis and repairs, reduces equipment replacement costs, and minimizes the disruption and inconvenience to clients during plumbing and pipeline servicing. Its versatility, durability and customization provide a single solution for inspections across residential, commercial and industrial locations alike. Overall, this system offers efficiency, cost-savings and high performance for plumbing operations small and large scale.
