2mp IP 68 Waterproof Camera for Sewer Drain Underwater Pipe Inspection Video Camera for Pipe Clean Crawler Robot Camera System

Description

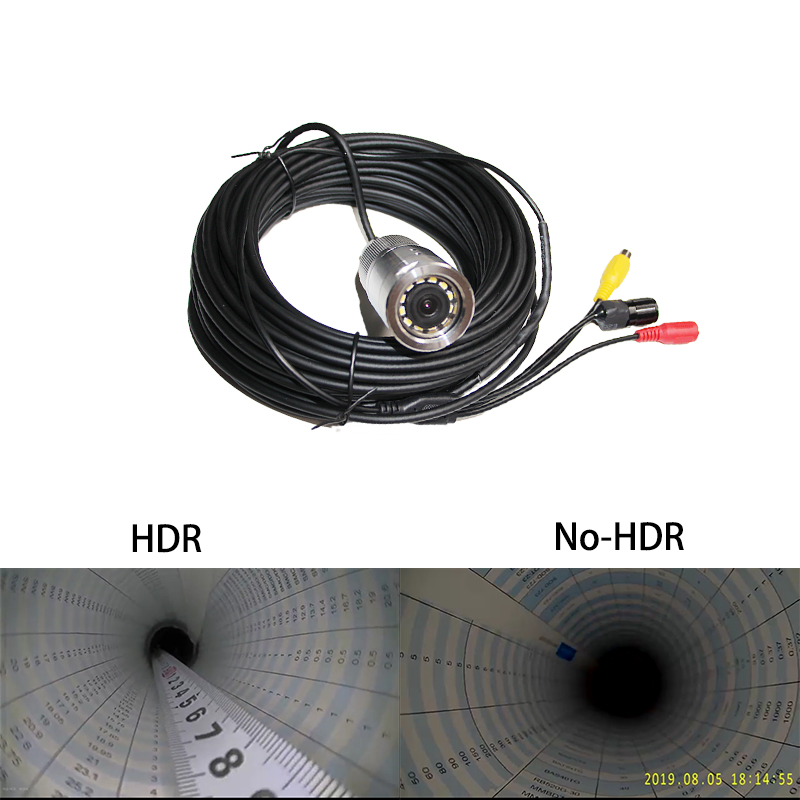

HDR Image Sensor

The high dynamic range (HDR) image sensor expands the camera’s dynamic range, allowing a greater ratio of bright and dark areas to be displayed in the same image at the same time without reducing visibility. The result is superior clarity and detail, allowing you to quickly and easily identify problem areas.

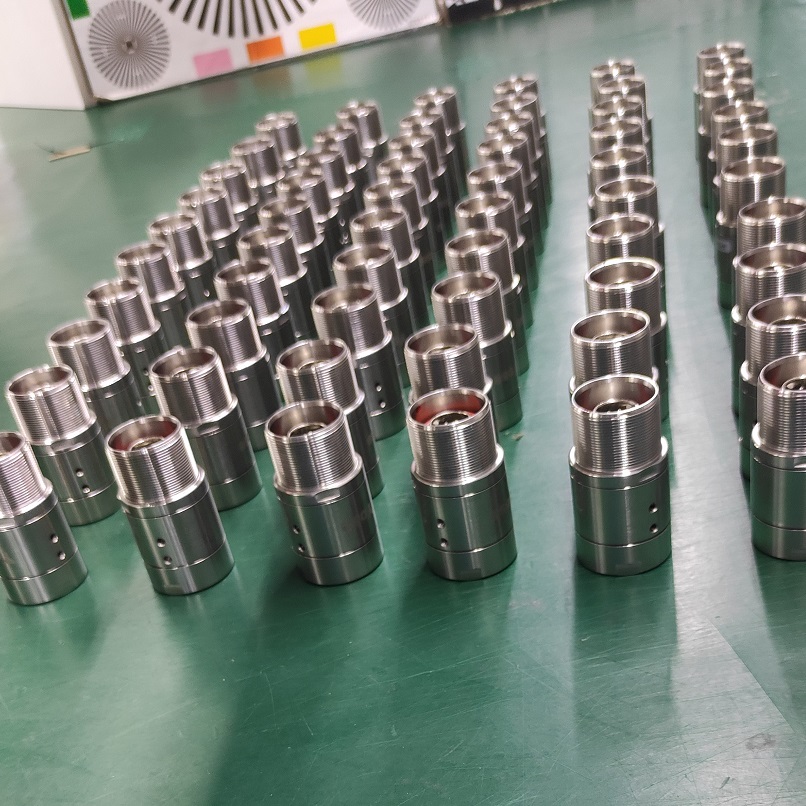

Robust Camera Housing - The drain camera housing is built with 316 anti-corruption stainless steel. And lens cover is sapphire crystal, not easy to be scratched.

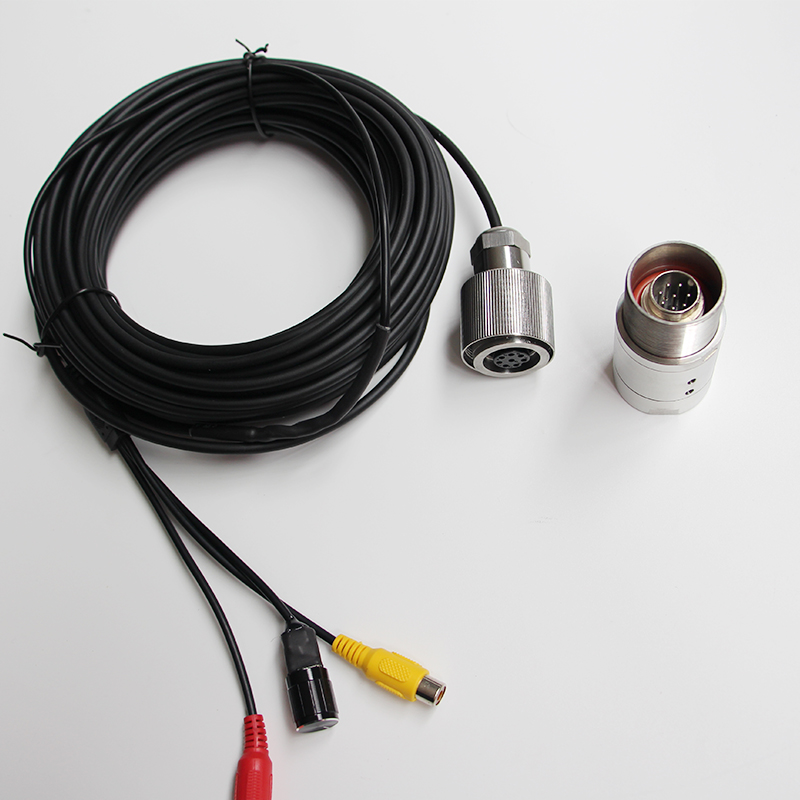

Waterproof Pin connection structure with O rings and interchangeable cables provide maximum flexibility for accessing various pipeline depth requirements.

High-Resolution Imaging - A 2MP high-sensitivity SONY image sensor delivers vivid 1920x1080 full HD resolution.
The 120-degree sapphire glass lens, with its 0.0001Lux minimal illumination, captures detail in even the dimmest environments.

Superior Low Light Visibility - 12 adjustable LED lights surrounding the camera head, combined with the low Lux image sensor, provide bright illumination for inspections in dark, unlit pipes with zero ambient light.

Customizable Cable Lengths - Cables are available in 0.5 meters up to 200-meter lengths to suit the varied depth and distance needs. Longer cable lengths do require additional costs due to more materials and resources required per project specifications.

Main features

·2.0 Megapixel high-performance Sony CMOS with HDR

·Analog HD output, up to 1080P resolution

·Support AHD and CVBS video output

·LED, IR850/IR940nm for option 12pcs light source, Sapphire crystal lens window.

·Low illumination, 0.001Lux F1.2 (color) / 0.0001Lux F1.2 (B/W)

·120degrees wide-angle FOV

·Waterproof Rate: IP 68, but due to it is with waterproof connector, it cannot work underwater a long time.

·316Stainless steel housing: high strength, hardness, anti-corruption

·Cable length: default: 0.5m; Max: 200m for option ( long cable needs more money)

* it can bear 100m deep water pressure, 20 bar.

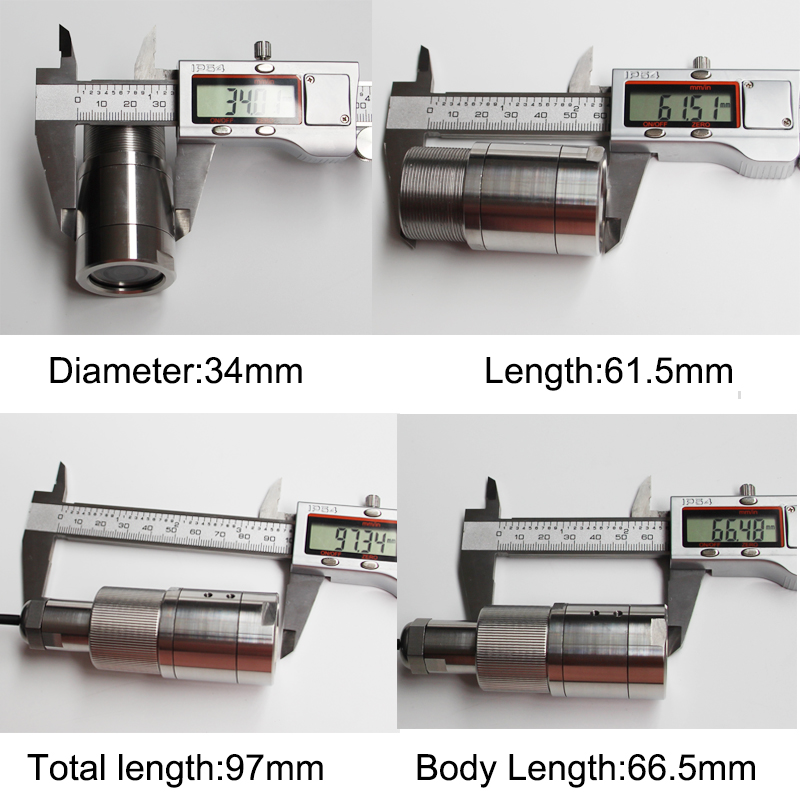

Details pictures :

Deep focus no any distortion 2MP low light 0.0001Lux swimming pool underwater video camera

Specifications of M2C2670GCB

This advanced drain camera offers significant benefits to professional plumbers, pipeline inspectors and contractors. Its robust, waterproof design and interchangeable cables provide access to pipes ranging from small diameters up to wide industrial drains, enabling you to service more clients across residential, commercial and municipal locations.

High-resolution imaging including an integrated 120-degree lens captures details as fine as 0.0001 Lux to give technicians a clear view of pipe interiors, including tight bends and T-sections. 12 adjustable LEDs illuminate dark, unlit pipes when zero ambient light is present.

Durable 316 stainless steel housing protects the camera and lens assembly in harsh, corrosive environments and demanding usage, providing maximum value and equipment life. Customizable cable lengths up to 200 meters suit the depth and reach needs of each application, preventing the high costs of abandoning shorter-length cameras that can’t access longer pipeline runs.

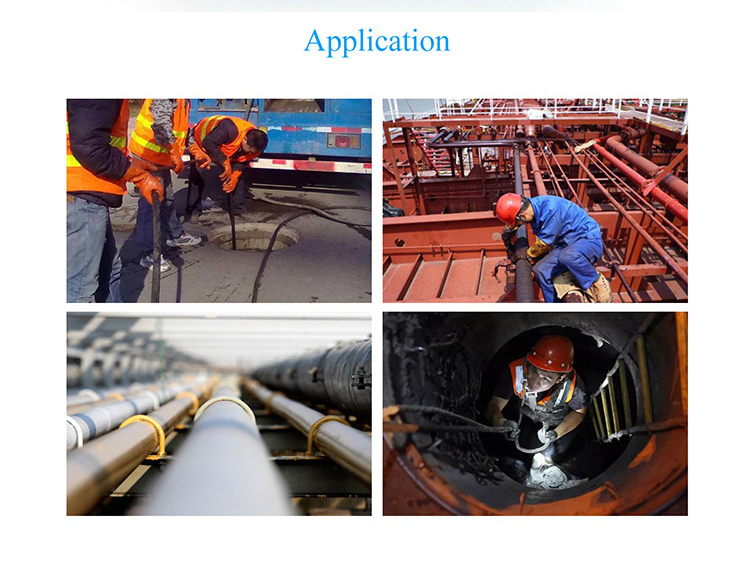

Uses include identifying pipe blockages, sediment buildup, tree root infiltration or structural damage for routine maintenance or emergency services. Easily locate the source of leaking or burst pipes under floors, behind walls or beneath infrastructure to minimize repair and renovation costs. Inspect new pipeline installations to ensure proper joint sealing, slope drainage, and clearance before putting into operation.

This industrial drain camera enables faster diagnosis and repairs, reduces equipment replacement costs, and minimizes disruption and inconvenience to clients during plumbing and pipeline servicing. Its versatility, durability and customization provide a single solution for inspections across residential, commercial and industrial locations alike. Overall, this system offers efficiency, cost-savings and high performance for plumbing operations small and large scale.
