2MP AHD 316L Stainless Steel Tube Pipe Sewer Drain Duct Downhole Well Seawater Inspection CCTV Marine Camera

M2C2302S

minimum order:

1 piece

Quantity:

Contact Now

Place of Origin:Guangdong, China
Brand Name:3RDEYE
Model Number:M2C2302S
Warranty:1 Year
Special Features:NIGHT VISION, Waterproof / Weatherproof, High temperature resistance
Network:N/A
Function:Wide Angle, NIGHT VISION
Video Compression Format:H.264
Data Storage Options:DVR
Application:Outdoor
Customized support:Online technical support, Customized logo, OEM, ODM, Software reengineering
item name:Marine camera
Resolution:1920*1080
imager sensor:sony imager sensor
Light source:12 LED
vision distance:4-12cm
view angle:120 degree
waterproof rate:IP68
video frame rate:Pal 1080P /25fps NTSC: 1080P /30fps
output signal:default AHD
Power Supply:5-12V

Product Overview

Model: M2C2302S Pipe Video Camera

1080P AHD Mini Tube Pipe Sewer Drain Chimney Duct Downhole Well Inspection CCTV Camera With 12 LED

The Drain well pipe video inspection camera is ideal for plumbers, pipe cleaning companies, municipalities, and canal
construction. These professional drain cameras with an extra flexible cable that will not snap easily,
a fully waterproof camera head, and LED /ir LED illumination. They can be used in channel and drain lines, sewage tanks,
ventilation shafts, chimneys, foundations, cavities, and civil engineering applications

FEATURES AT A GLANCE

It is pin connection , easy to change cameras from different length cable.sapphire crystal lens window
Camera housing: 316L stainless steel
SONY Image Sensor AHD 1920(H)*1080(V)
Signal System: PAL/NTSC
Angle of View: 120 °lens 12pcs light

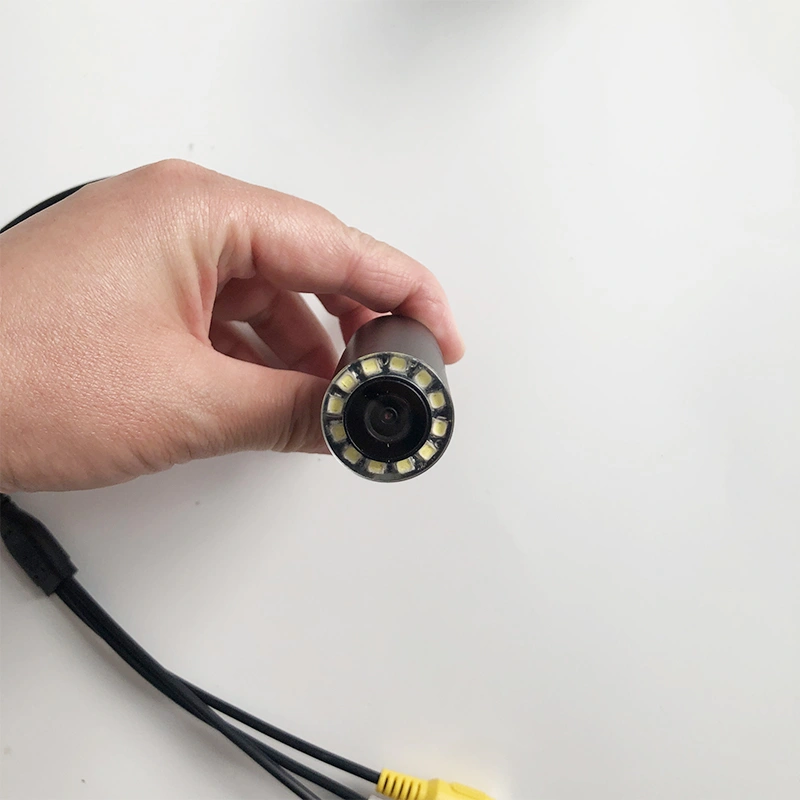

Underwater camera front

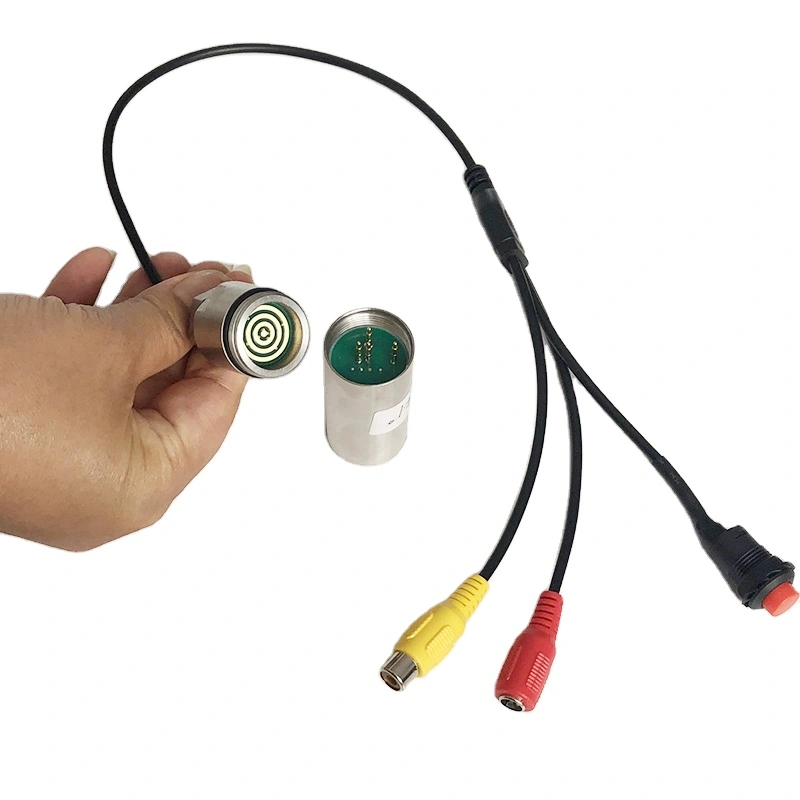

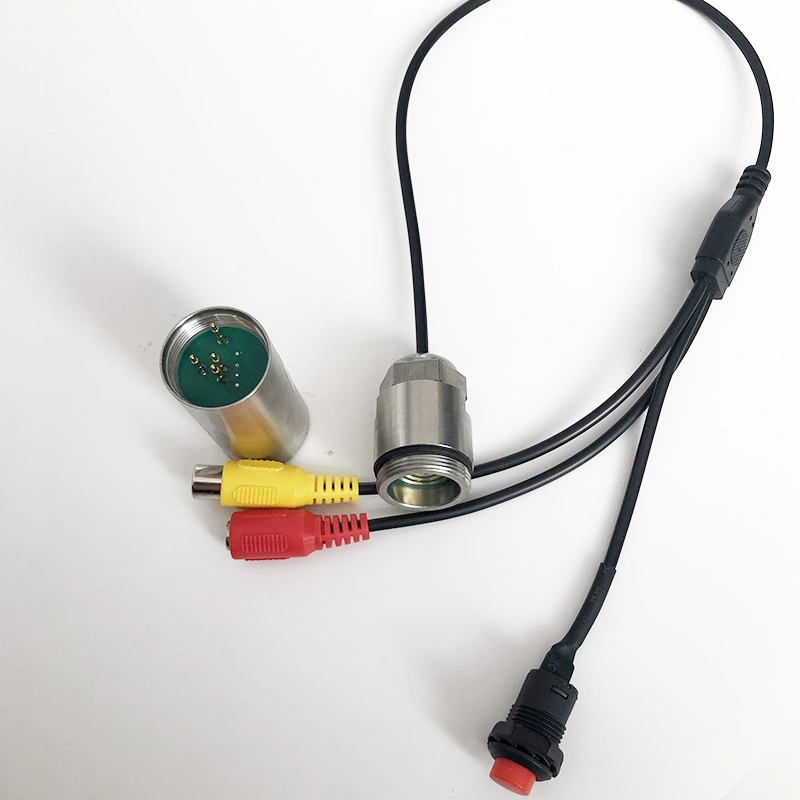

camera underwater end with connnector

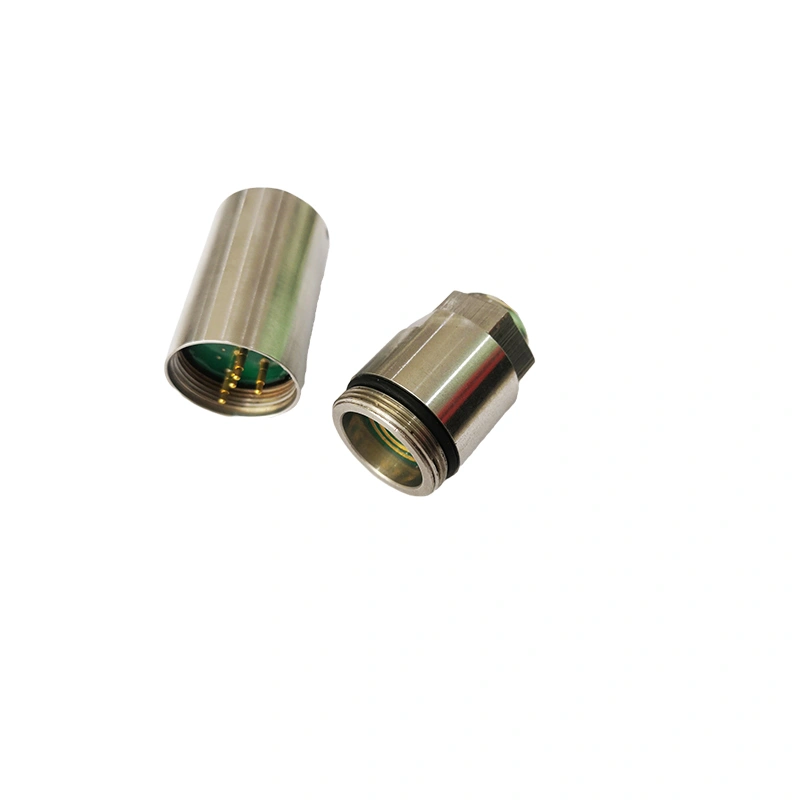

camera marine without cable

PRODUCT SPECIFICATIONS

Camera housing material	316L stainless steel
Sensor Type	Sony CMOS
Effective resolution	1920(H)*1080(V) /2.0 Mega Pixel
Video output format	1080P AHD
Video Frane Rate	PAL: 1080P@25FPS, NTSC:1080P@30fps
Camera Dimension	ø23mm*65mm(L)
Focus	Manual
Waterproof Rate	IP68 max 20m
Lens View angle	140°
Light source	12 LEDS
