Infrared Thermal Imaging Life Search Camera

TD500C/360C

minimum order:

1 piece

Infrared Thermal Imaging Life Search Camera with 5 M telescopic pole and a 7" or 10.1" recording Monitor.
Heat Tracking and temperature shows.
It is equipped with a manual flexible probe that can be bent or angled 360°for objects in hard-to-access places.
Or you can choose the 360 Pan Tilt Camera.

Quantity:

Contact Now

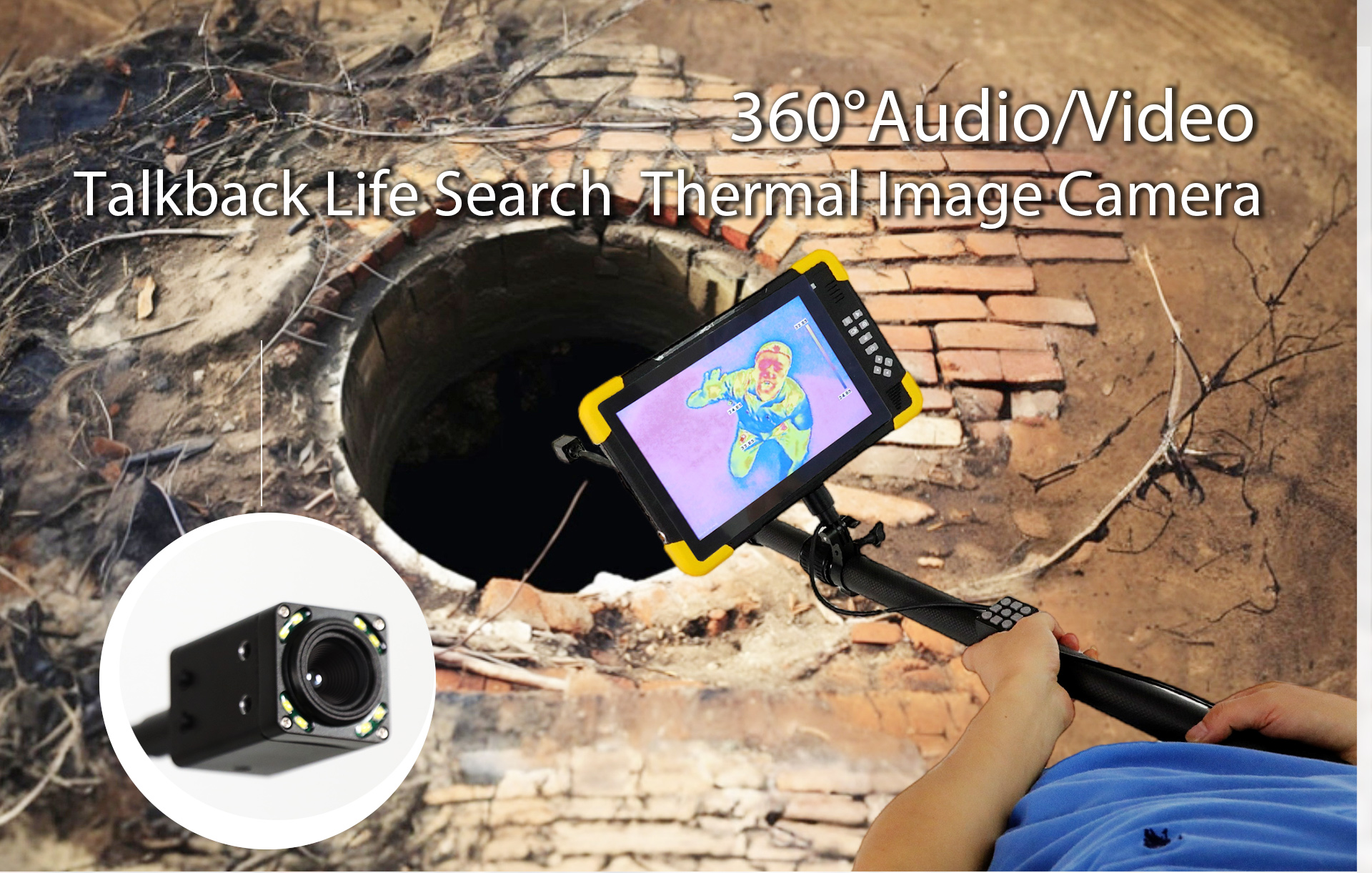

The 5m Telescopic Pole Infrared Thermal Image Life Search Camera is a high-tech rescue tool designed for detecting victims in challenging environments such as earthquake and fire rescue operations. This Thermal Image Camera system combines advanced thermal imaging technology with a telescopic pole, making it ideal for search and rescue missions, industrial inspections, and security surveillance.

Key Features of the Telescopic Pole Camera:

High-Resolution Thermal Imaging Telescopic CCTV Camera
- Infrared Image Resolution: 256x192 pixels or 384*288 pixels, providing clear and detailed thermal images.
- Wavelength Coverage: 8-14um, ensuring accurate temperature detection.
- Temperature Range: 20°C to 550°C (-4°F to 1022°F), with a measurement accuracy of ±2°C or ±2%.
Telescopic Pole
- Carbon Fiber Pole: Lightweight and durable, extending up to 5m (16.8ft) and collapsing to 1.38m (4.5ft).
- Weight: 2.2 kg (4.9 lbs), making it easy to carry and deploy.

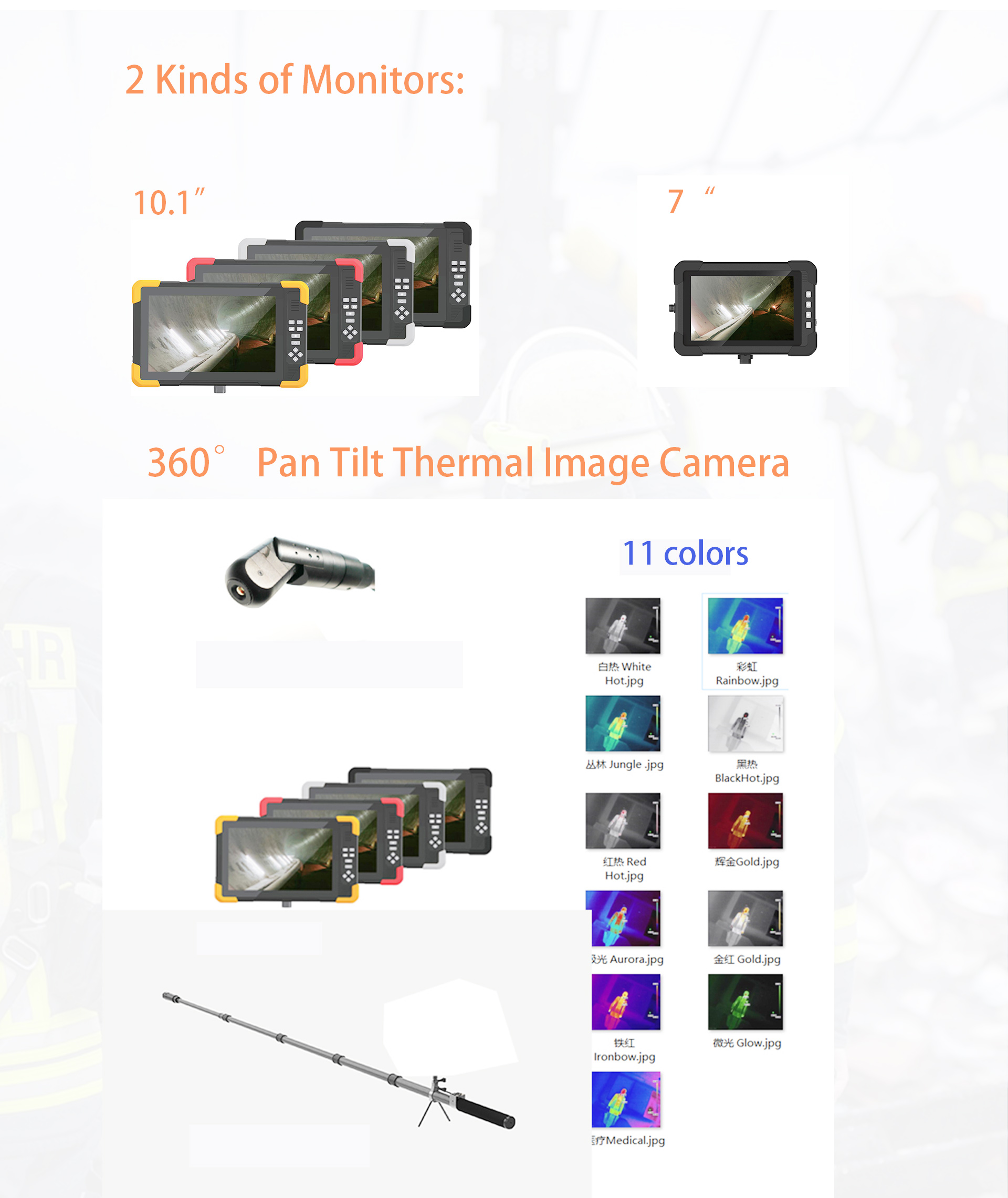

7"or 10.1"Monitor with DVR
- High-Resolution Screen: 10.1 inch 1280 x 800 px, with a touch screen structure process.
- Recording and Photography: Supports 4K (3840x2160), 2K (2560x1944), and 1080p (1920x1080) video recording, as well as 12MP photo capture.
- Playback and Zoom: Features 10x zoom, image flip, and playback capabilities.
- HDMI Output: Connect to external monitors for larger viewing.
- Storage: Supports up to 256GB TF card, with a default 64GB card included.
- Battery Life: 6200mAh 48W Li-battery, providing over 4 hours of continuous use.
- WiFi Wireless Transmission: View and control the camera via a mobile app on smartphones or tablets.
- Rubber Protective Cover: Four corners are protected with removable rubber covers for added durability.
Applications of the Life Search Thermal Image Camera
- Search and Rescue: Quickly locate and assess situations in hard-to-reach areas.
- Industrial Inspections: Inspect pipelines, tanks, and other infrastructure with precision.
Specications of the telescopic cctv camera with thermal image

Thermal Image Life Search Camera support Talkback
Detector	Polycrystalline Silicon Uncooled Focal Plane Array
Infrared image resolution	256192/384288px
Wavelength coverage	8—14um
Lens/Field angle	4mm /F1.0 / FOV 64°*49°
Temperature range	20℃ to 550℃ (-4°F to 1022°F)
control Temperature	(-40°C to 60°C)
Temperature measurement accuracy	±2°C or ±2%
Communication range	about 300 cubic meter
Color Palette	White Hot Gold Ironbow Rainbow Glow Aurora Red Hot Jungle Medical Black Hot Gold-Red
Size	29*48mm
Light source	8 pcs LED
Heat tracking	Support
7"/10.1“4K Touch Screen Recording Monitor
Display	10.1 inch /7 inch 1280 * 800 px
Touch screen structure process	Capacitive touch
Video recording	4K(16:9): 3840x2160
	2K(4:3): 2560x1944
	2K(16:9): 2560x1440
	1080p(16:9): 1920X1080
Video input	AHD 4k,2k,1080p,720p,cvbs
Video format	MP4
Photo	12MP、8MP、4MP、2MP
Video Output	HDMI 1080P
Compression mode	H. 264 video compression
Audio input/output	1.0Vp-p (20Hz-20KHz)
Speaker Output	1W
Memory card	TF card 2GB-256GB
Language	Varied
WiFi Protocol	802.11 a/b
WiFi Channel	2.4000-2.4835Ghz
WiFi power	<16dBm
Power Supply	DC 12V 2.5A
lithium battery	6200mAh( 48Wh)/7 inch 5000mAh
Complete working time	6-8 hours
Waterproof grade	IP65
Screen size&weight	LWH : 10.1"30191.8CM,865g/ 7"21114128mm
