Multiple Cams 4K Earthquake Life Search Detector

LD360-4K-X
minimum order:
1 set

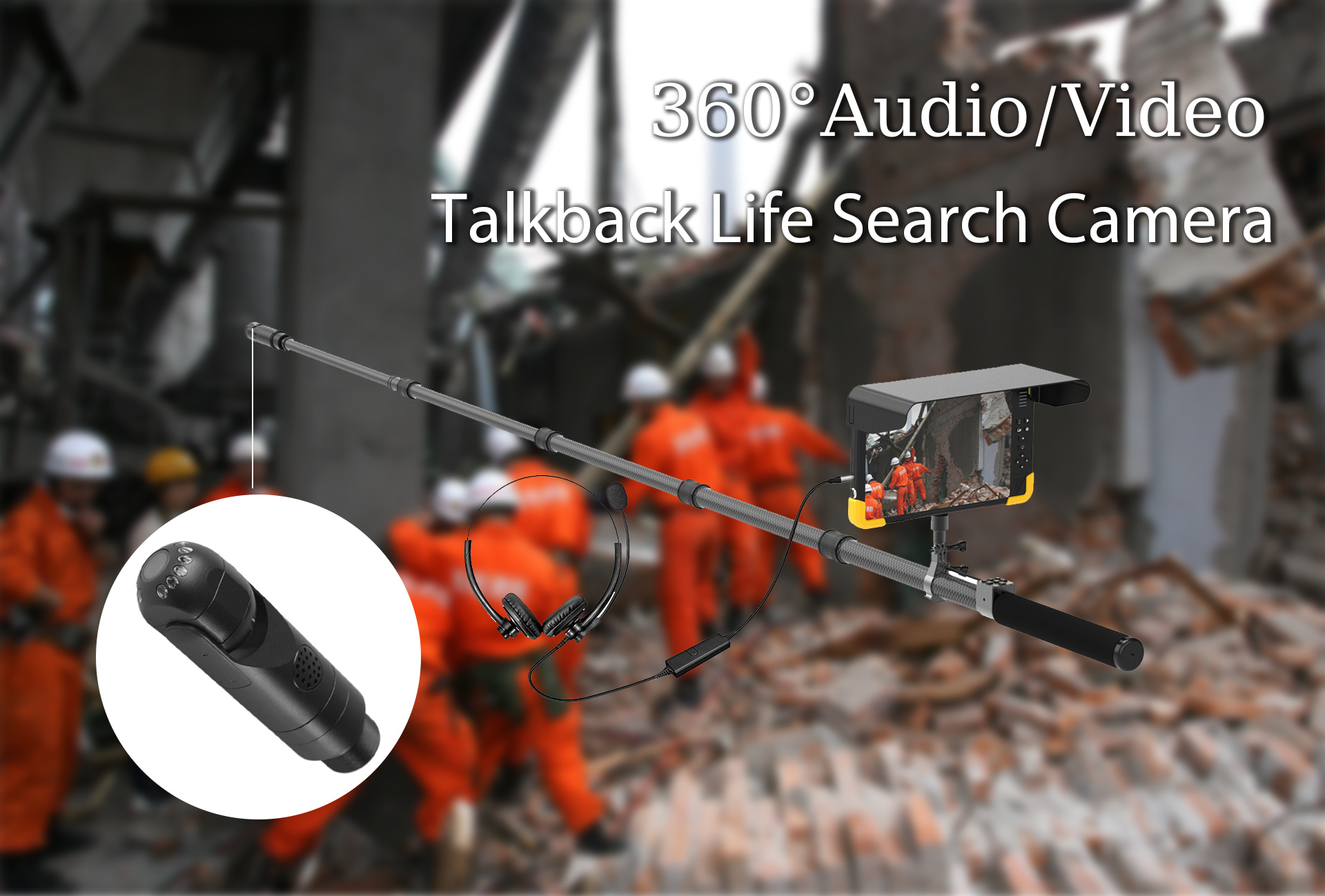

The life search camera combines a 4k video and audio monitor, and different kinds of search cameras with a 5m telescopic pole to accurately detect and locate buried victims under rubble after a disaster.
Wireless transfer photos and videos to mobile and offer Latitude and longitude positioning.It is helpful rescue equipment for USAR, FEMA, rescue teams, First Responders, Emergency, disaster response and victim location.
Quantity:
Contact Now


Wifi 4K Recording Monitor and 360 Pan Tilt Earthquake Life Search Detector with Different kinds of Cameras








D  Description of our Wifi 360 Pan Tilt Urban Search and Rescue Kit

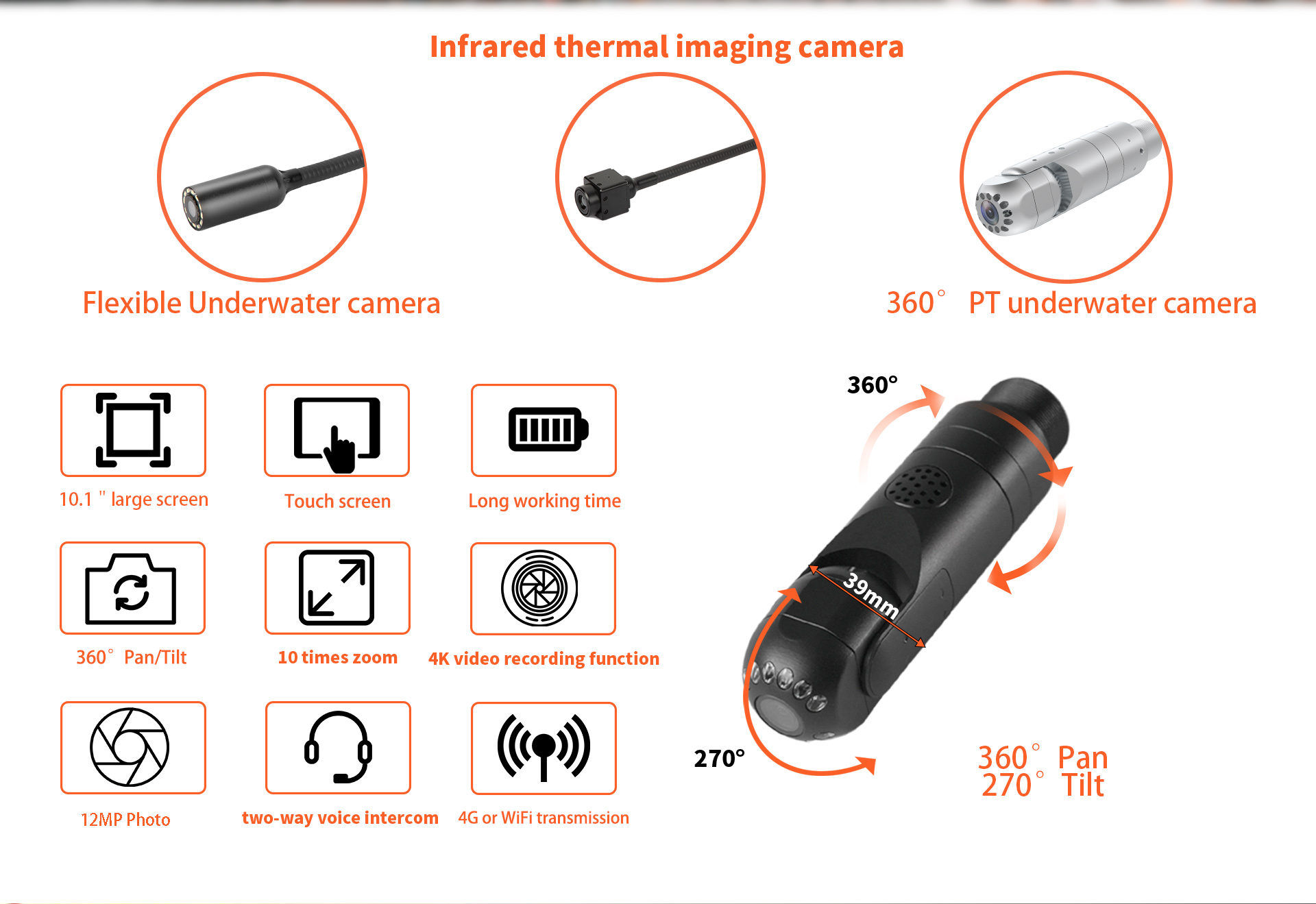

The Victim Location Camera WaterproofLife Detector is the third eye and ear in the slits of ruins of Rescue teams, helping them accurately identify the orientation of the survivors, rescuing survivors who are in the light. It is made of a 5m light-weight Fiber Carbon Pole which is able to reach out into depths and void space up to a distance up to 5m. different kinds of detector cameras, 360 ° Waterproof camera, 360 PT talkback camera a snake eye flexible mini camera or thermal image camera can and 8mm endoscope cam etc. and 10.1-inch recording monitor.

This360 pan tilt earthquake lifesearch camera is used even in an environment without light.

The 10.1-inch high-definition LCD DVR displays high brightness 1000cd/m2 and supports 180 ° flip image, 4K,2K resolution recording, 12MP photos and 10 times zoom function, It also supports the inner keyboard to edit the photos.

Wireless transfer photos and videos to mobile and offer Latitude and longitude positioning.

 The Multiple function Rescue Camera is suitable for earthquake, collapse, and building collapse under the ruins of rescue, suitable for fire, safety supervision, public security, municipal, manufacturing, technical rescue, trench rescue, urban search and rescue, vehicle rescue and other scenes.

S  Specifications of Life Search Telescopic Pole Detector

10.1“4K Touch Screen Recording Monitor
Display10.1 inch 1280 * 800 px
Touch screen structure processCapacitive touch
Video recording4K(16:9): 3840x2160
2K(4:3): 2560x1944
2K(16:9): 2560x1440
 1080p(16:9): 1920X1080@25 /30fps
Video input4K 25fps,4K 30fps,2K 25fps, 2K 30fps,1080P 25fps,1080P 30fps,720P 25fps, 720P 30fps,CVBS pal, CVBS ntsc
Video formatMP4
Photo12MP、8MP、4MP、2MP
Video OutputHDMI 1080P
Compression modeH. 264 video compression
Audio input/output1.0Vp-p (20Hz-20KHz)
Speaker Output 1W
Memory cardTF card  2GB-256GB
LanguageVaried
WiFi Protocol802.11 a/b
WiFi Channel2.4000-2.4835Ghz
WiFi power<16dBm
Power SupplyDC 12V  2.5A
lithium battery6200mAh( 48Wh)
Complete working time6-8 hours
Waterproof gradeIP65
Screen size&weightL*W*H 30*19*1.8CM,865g
Flexible Snake tube 23mm Intercom Camera
Sensor5MP Cmos 2560*1944 PX
light source12LED or ir850nm IR
Minimum illumination 0.08Lux/F1.2
Lens2.8mm F2.2  141.9°
size and weightD:23mm*38mm, Flexible length:38mm
Camera housing materialBlack color Aluminum alloy
Flexible Snake tube 23mm waterproof Camera
Sensor5MP Cmos 2560*1944 PX
light source12LED or ir850nm IR
Minimum illumination 0.08Lux/F1.2
Lens2.8mm F2.2  141.9°
size and weightD:23mm*49mm, Flexible length:38mm
Camera housing materialBlack color Aluminum alloy
Thermal Image Camera support Talkback
DetectorPolycrystalline Silicon Uncooled Focal Plane Array
Infrared image resolution256*192px
Wavelength coverage8—14um
Lens/Field angle4mm /F1.0 /   FOV  64°*49°
Temperature range20℃ to 550℃ (-4°F to 1022°F)
control Temperature(-40°C to 60°C)
Temperature measurement accuracy±2°C or ±2%
Communication rangeabout 300 cubic meter
Color PaletteWhite Hot/Gold/Ironbow/Rainbow/Glow/Aurora/Red Hot
Jungle/Medical/Black Hot/Gold-Red
Size29*48mm
Light source8 pcs LED
Heat trackingSupport
5MP 3405 deep water camera with 20m wires
Sensor5MP Cmos 2560*1944 PX
light source12LED or ir850nm IR
Minimum illumination 0.08Lux/F1.2
Lens2.8mm F2.2  141.9°
size and weightD:34mm
Camera housing material316 stainless steel
Cable length20m 4.2mm
360 PT Talkback Camera
Sensor5MP Cmos 2560*1944 PX
light source12 LED or  ir850nm IR led
Minimum illumination 0.01Lux/F1.2
Lens2.8mm F2.0  134.7°
PTZ rotateHorizontal: 360 ° circular; Vertical:270°
size and weightD:39mm*57mm Rotation part,Total length:153mm
Camera housing materialBlack color Aluminum alloy
360 PT Talkback Thermal Image Camera
light source12 LED or  ir850nm IR led
Minimum illumination 0.01Lux/F1.2
Lens2.8mm F2.0  134.7°
PTZ rotateHorizontal: 360 ° circular; Vertical:270°
size and weightD:39mm*57mm Rotation part,Total length:153mm
Camera housing materialBlack color Aluminum alloy
DetectorPolycrystalline Silicon Uncooled Focal Plane Array
Infrared image resolution256*192px
Wavelength coverage8—14um
Lens/Field angle4mm /F1.0 /   FOV  64°*49°
Temperature range20℃ to 550℃ (-4°F to 1022°F)
control Temperature(-40°C to 60°C)
Temperature measurement accuracy±2°C or ±2%
Communication rangeabout 300 cubic meter
Color PaletteWhite Hot/Gold/Ironbow/Rainbow/Glow/Aurora/Red Hot
Jungle/Medical/Black Hot/Gold-Red
Heat trackingSupport
360 PT  LED Waterproof Camera( Cannot work work underwater for long time)
Sensor5MP Cmos 2560*1944 PX
light source12 LED or  ir850nm IR led
Minimum illumination 0.01Lux/F1.2
Lens2.8mm F2.0  134.7°
PTZ rotateHorizontal: 360 ° circular; Vertical:270°
size and weightD:39mm*57mm Rotation part,Total length:153mm
Camera housing materialSilver color Aluminum alloy
8mm snake camera
Resolution1280*720P
light source8 pcs LED
Minimum illumination 0.01Lux/F1.2
View angle75 deg
camera diameter8mm
camera cable flexible gooseneck cable 3m
Carbon Fiber Telescopic Pole
MaterialCarbon Fiber
Unfold length5.15 meter/3.6m
Fold length1.38 meter/ 0.95m
package126*28*14/CM, G.W:10kg, N.G:5.8kg

Search & rescue - Pole cameras can be used to search for victims in areas that are difficult or dangerous for rescuers to access directly, such as in collapsed buildings, steep slopes, tunnels,
wells, etc. The extendable pole allows the camera to reach otherwise unreachable locations.



Infrastructure inspection - The telescopic pole and pan/tilt camera can be used to visually inspect bridges, cell towers, pipelines, attics, basements and other infrastructure for damage or pests. This can eliminate the need for scaffolding or lift equipment.



Wildlife monitoring - Wildlife researchers use pole cameras to observe birds' nests, dens and other habitats that would be disturbed if accessed directly. The extendable pole allows close-up footage without startling the animals.



Public area monitoring - Retractable pole CCTV cameras provide an elevated viewpoint of parks, parking lots and other public spaces. They can deter criminal activity like vandalism or theft while recording events from a high vantage point.



Industrial/mining use - In industrial facilities like mines, refineries and mills, pole cameras are useful for monitoring areas with limited access like silos, drums, reactors or high shelves. They can provide visual access without needing to stop operations.



Construction monitoring - On construction sites, extendable pole cameras provide aerial views of worksite progress, equipment operation and worker safety without needing to climb scaffolding or cranes. Time-lapse footage can also document the progress of projects.



In-home use -Retractable pole cameras can be used by home owners or property managers to inspect gutters, attics, basements and other hard toreach areas of homes without needing a ladder. They provide visual access to inspect for needed repairs or pest issues like wasp nests.
