4K 10.1" Industrial Recording Monitor
All In One 10 Inch 4K Industrial Recording Monitor With Touch Screen
Model: RD100
RD100S is our new industrial monitor, it with 4K high resolution, with recording, display, playback, 8 times zoom functions,
campatible Lemo aviation connector, USB, BNC connector. support 4K, 2K,1080P, 720P, CVBS camera inpurt. that is good for industrial, medical, welding solder areas and so on
Selling points of the 10inch industrail LCD screen
1) Waterproof grade: IP65
2) Hand strap is removeable and adjustable

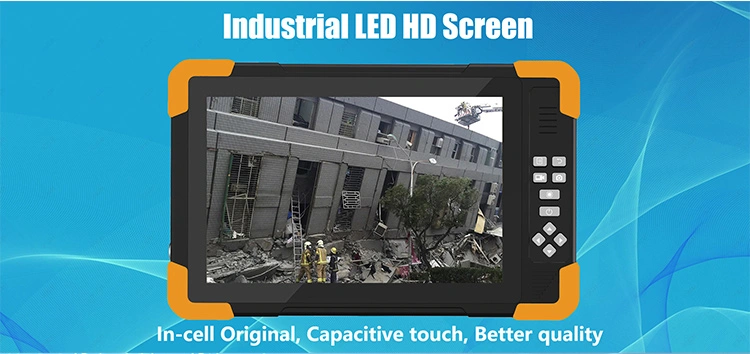

3) 10.1 inch full view(1280*800pix) IPS screen
4) Video input:HD 4K,2K,1080P,720P, 480P AHD,CVBS video input
5) Video Output: HDMI 1080P

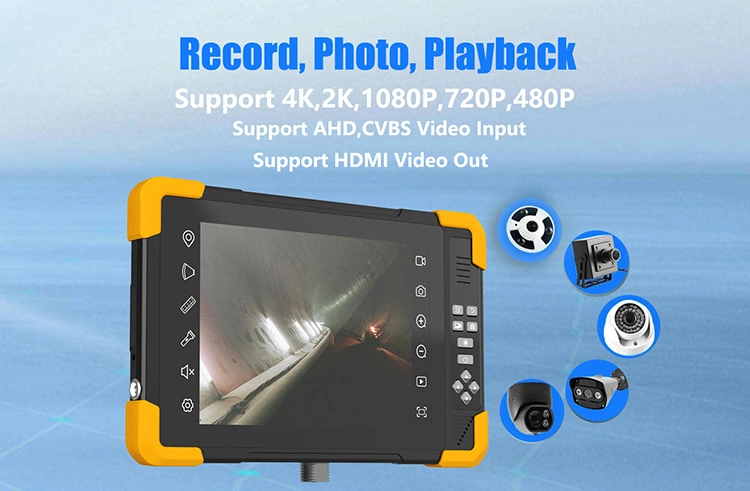

6) Support 4K,2K,1080P,720P,480P Record, photo, playback
7) Video compression format:H.264
8) Max Storage: up to 256GB TF card
9) Compressed video and audio are synchronous

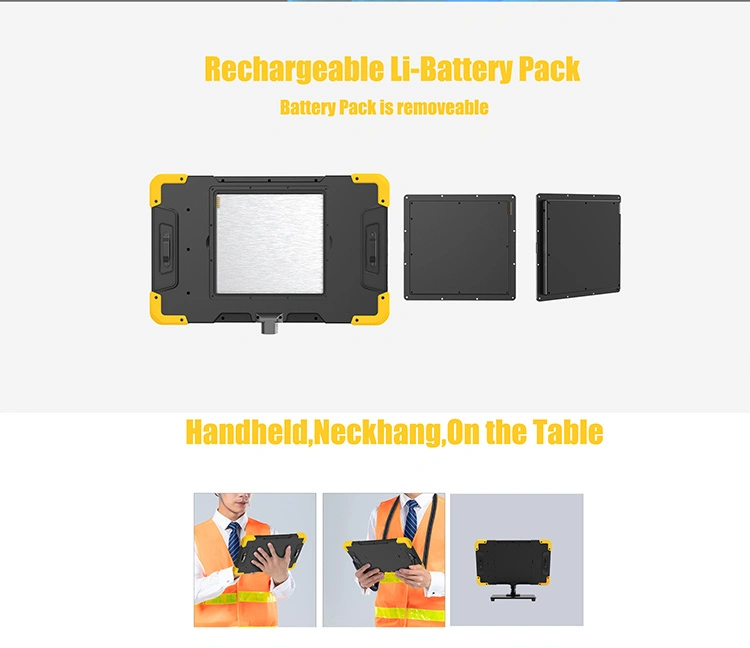

10) Built-in 6500mAh high capacity Li-battery, Battery is exchangeable
| Display | Panel | 10"LCD panel |
| Resolution | 1280*800 (optional 1920*1200) | |
| screen mode | Touch Screen | |
| Contrast ratio | 800 | |
| Luminance | 800cd/m2 | |
| Aspect Ratio | 9:16 or 4:3 | |
| Interface | Card slot | TF card max 256GB |
| USB | USB host*1 | |
| LEMO Connector | 10 pin within video audio etc | |
| Aviation Connector | 10 pin within video audio led etc | |
| Power jack | DC power input | |
| Earphone | 3.5mm earphone | |
| MDVR | Video Input format | 5MP AHD,2K,1080P,720P CVBS 8MP LVDS and USB |
| Record Video Resolution | 4K,2K,1080P,720P | |
| Video compression | H.264 | |
| Audio format | AAC etc. | |
| Video Output format | 4K(3840*2160px) output | |
| Photo | 12MP,8MP,5MP,2MP for option | |
| Special function | Zoom in/out | Photo zoom in/out |
| Speak& Listen | 2*2W | |
| Photo Edit | Support Photo Edition | |
| Ratio Switch | 9:16 or 4:3 | |
| Working temp | 0--40 degree | |
| Certificates | CE, FCC, RoHS | |
| Language | Multi-language | |
| Accessories | Adapter | Adapter, 12V/3A |
| User manual | yes |
