Hot Sell 5.0MP1080P Full HD Digital Car Security Checking Mirror Portable Telescopic Pole Camera Under Vehicle Inspection System
- Place of Origin:Guangdong, China
- Brand Name:3rd Eye & OEM
- Product name:Vehicle inspection camera system
- Camera Pixels:5.0 MP 1080P HD
- Foldable telescopic length:58cm to 188cm
- HD video output:HDMI:1920x1080
- Sensor:CMOS
- Language:Multiple
- Warranty:1Year
- Storage:64GB TF card maximum
- Package:aluminium alloy case
- LOGO:allowed
Hot Sell 5.0MP1080P Full HD Digital Car Security Checking Mirror Portable Telescopic Pole Camera Under Vehicle Inspection System
Model No: H2D-300
D Description of our under vehicle inspection system H2D-300
This 5.0MP 1080P full HD digital portable telescopic pole camera under vehicle inspection system is for vehicle bottom security surveillance.2 kind telescopic survey pole for all-purpose usage .Our UVSS solutions are designed to scan, monitor,anddigitally record crisp,clear digital video images of the entire width of a vehicle’s undersides portable system.
F Features of 1080P HD UVIS
• Double HD digital camera for checking.
1st camera: 5.0MP 16 LED camera with universal wheels.
2nd camera: 5.0MP 16 LED camera Φ18mm with 0.25m flexible pole.
• Universal wheel with wear-resisting tires.
• Reinforced design passed 10000 times crash testing.
• 2m Telescopic Survey Pole for all-purpose usage.
• A 7-inch monitor with a sunshade.
•Wheels are available to all types of terrains.
• Support 64GB storage.
• Support HDMI video output.
• Support H.264 Video Compression Format.
• 7500mah Li-battery, 8 hours working time.
•The camera is waterproof.
• Top grade aluminum alloy case
• Excellent video and photo.

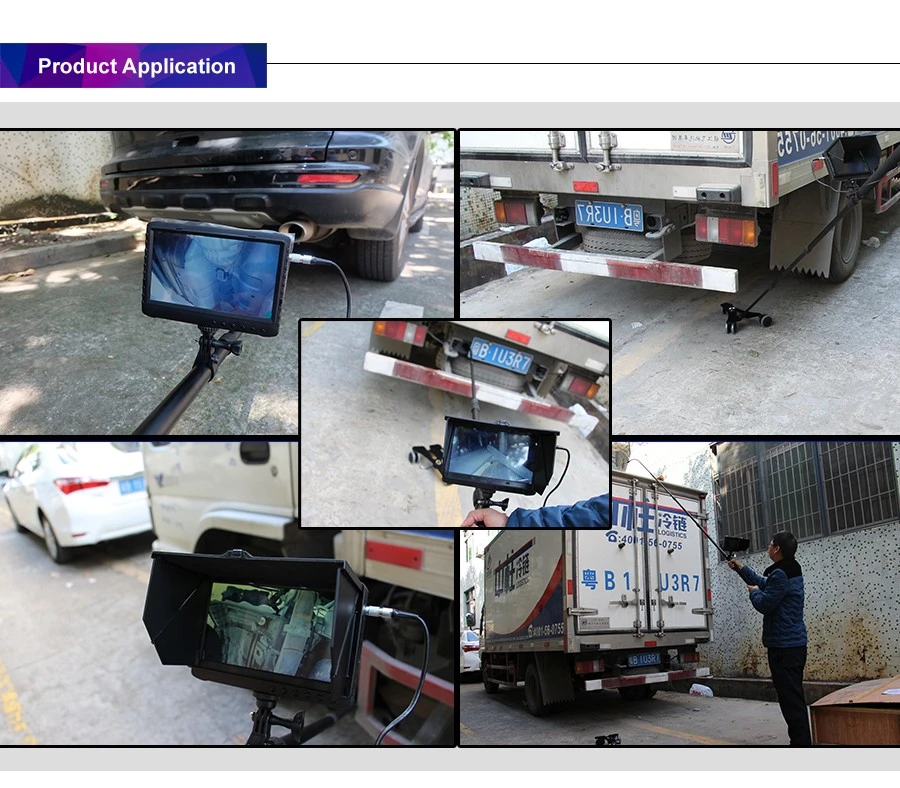

A Application of 1080P HD UVIS
Our portable telescopic pole camera under vehicle inspection system can be used in the airport, wharf, customs, hotels, prisons,
restricted zones and so on for checking the security of the bottom of the vehicles.
It is also suitable for checking if there are explosives under the cars which park in the
stadium, station, cinema, theater, large factories, venue and so on.

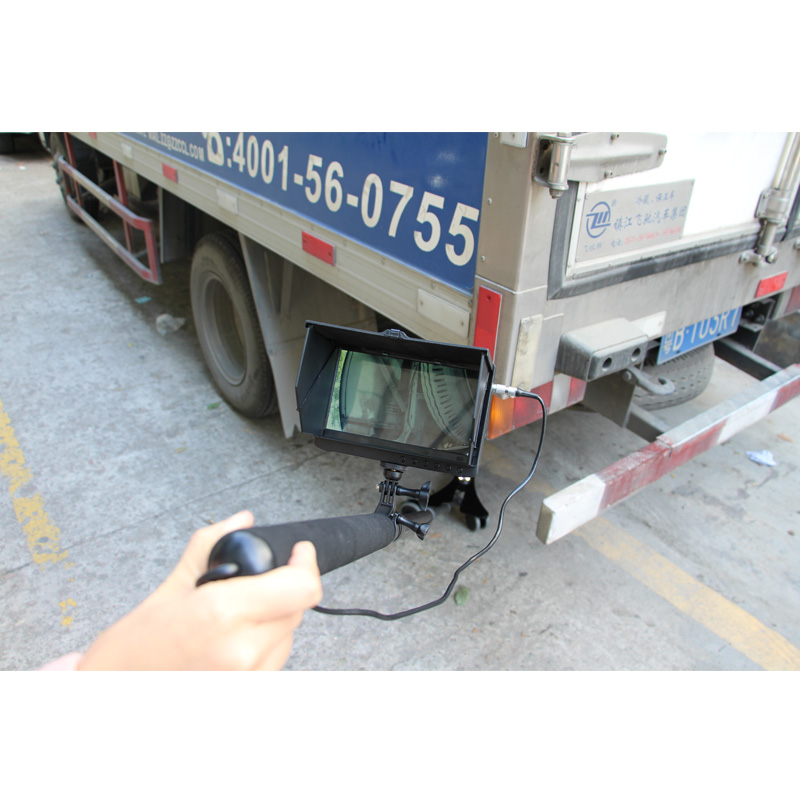

Under vehicle security checking

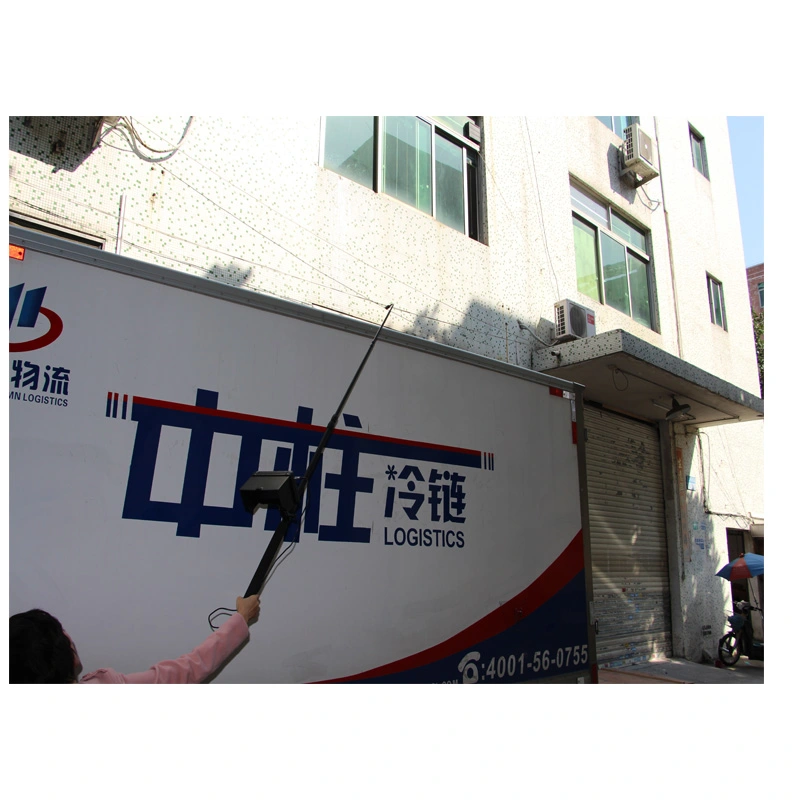

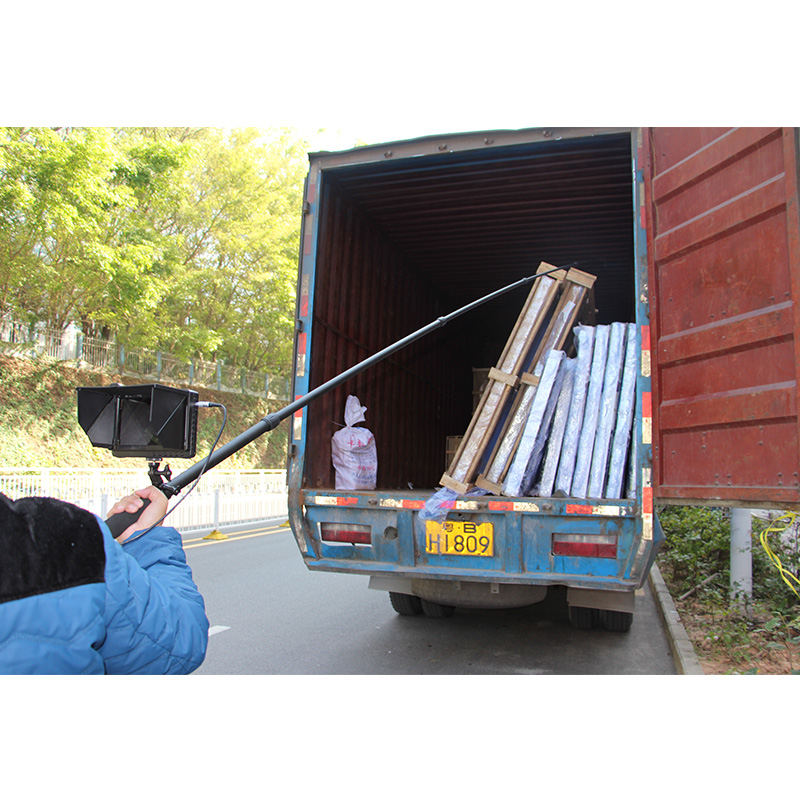

Overhead vehicle security checking
Inner vehicle security checking

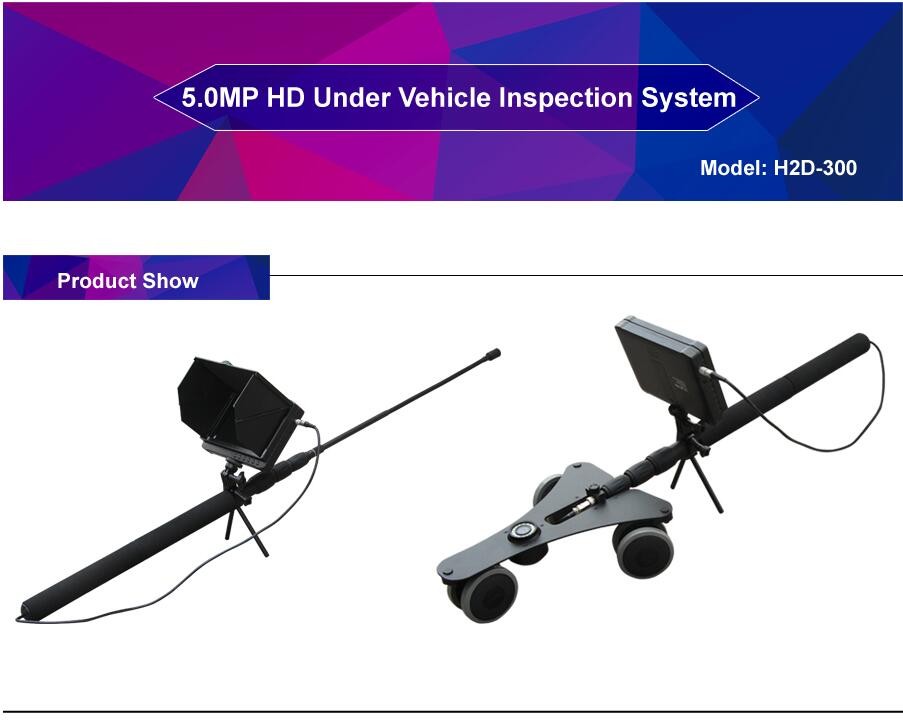

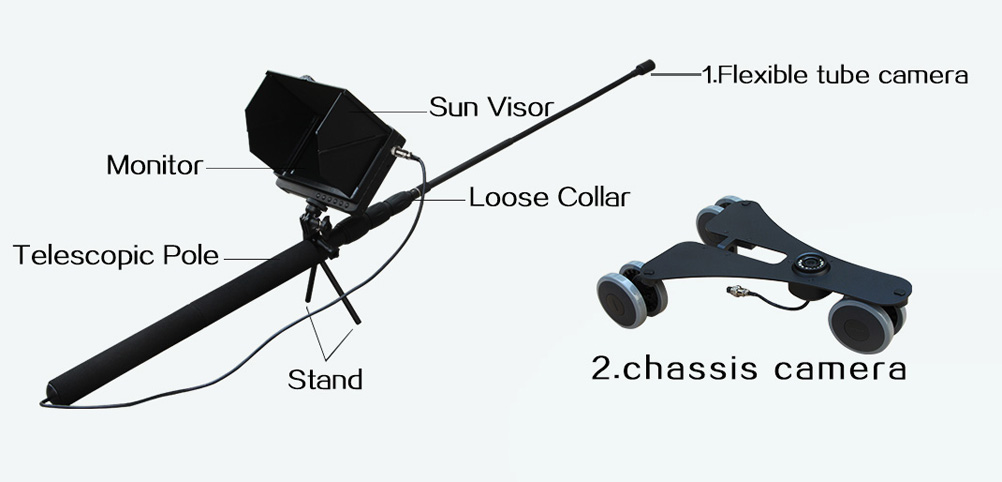

The Structure of the vehicle inspection camera system

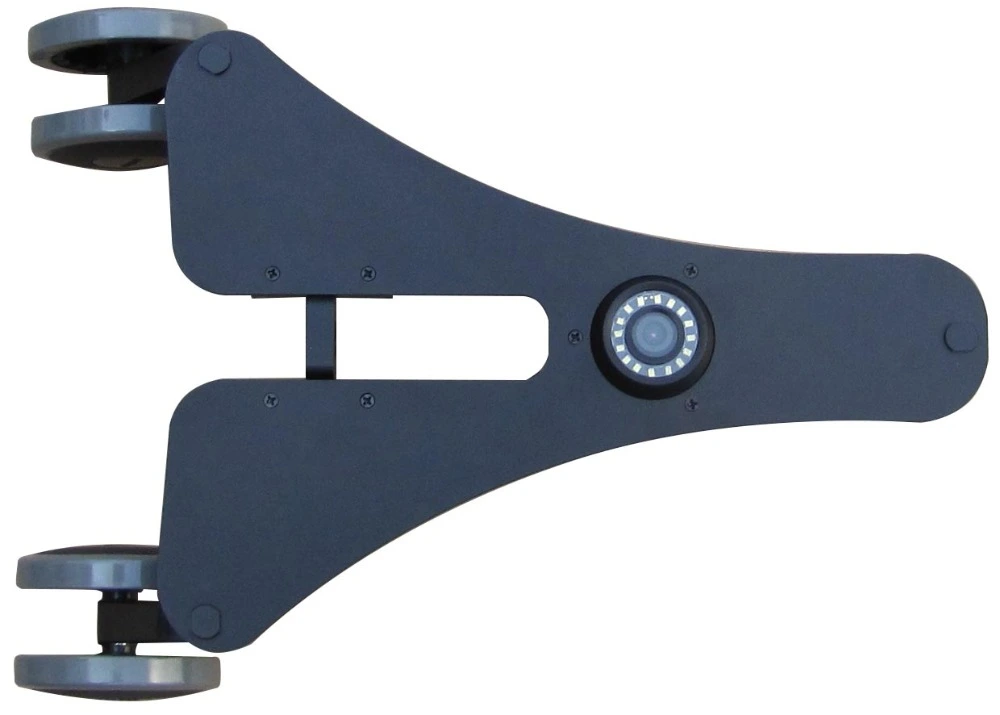

Own wheel tray design with the patent of invention

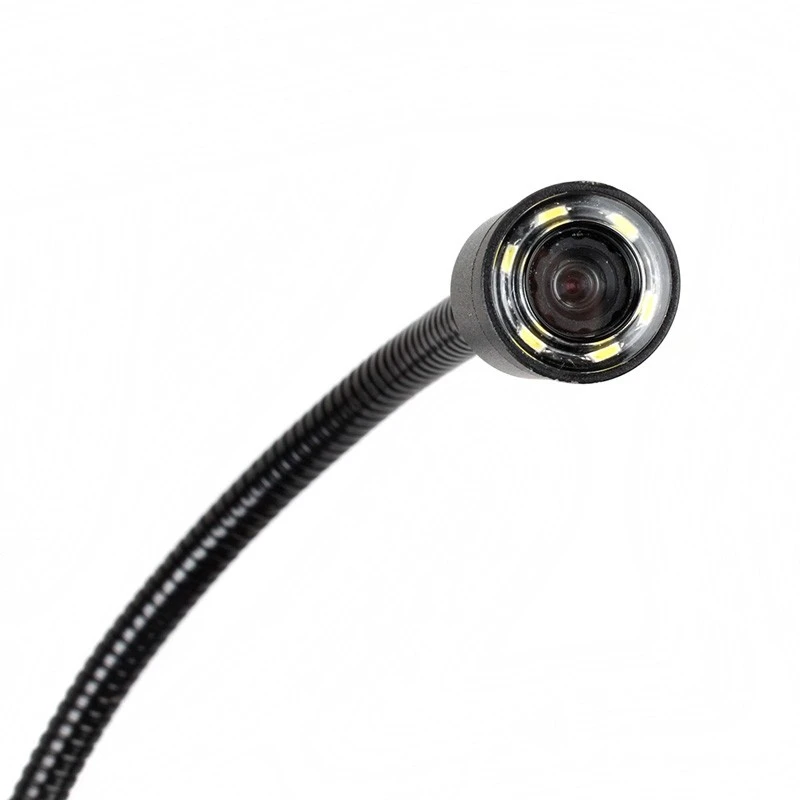

HD waterproof digital camera head with 6 LED

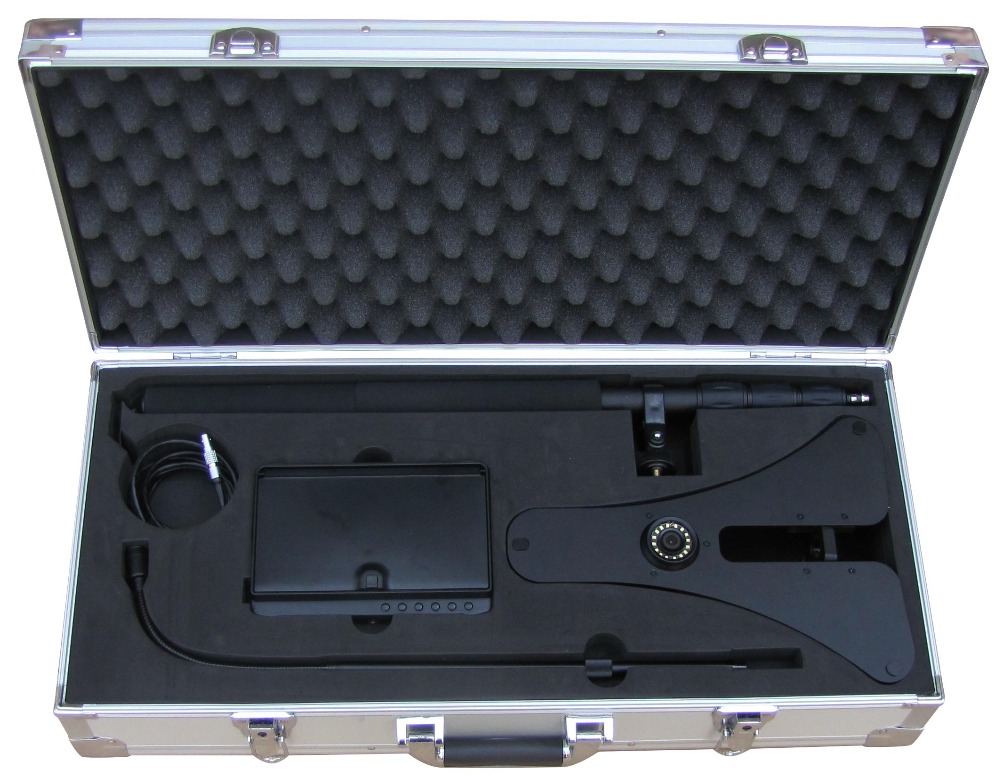

Package of 1080P UVIS
Pressure-proof aluminum alloy case
SSpeification of our under vehicle inspection system H2D-300
| under vehicle inspection camera | |
| Optical Element | 1/2.5 CMOS Sensor SONY |
| Optical Total Pixels | 5.0MP:3200(H)×1800(V) |
| CMOS Sensor Size | 5.6mm(H)×3.14mm(V) |
| Sensitivity | 0.08Lux/F1.2 |
| Light source | 6pcs LED/ IR lamps controlled on DVR |
| Lens & View angle | 3.6mm F1.2 (H )105 ° |
| HD Video Output Interface | FPD-LinkⅢ |
| Data cable | Diameter:5mm Length:3m |
| Dimension & Weight | 38/48.5x 44mm, 73g(only camera) |
| Wheels on the tray | Omni-directional wheel |
| vehicle surveillance system | |
| Optical Element | 1/3 CMOS Sensor |
| Optical Total Pixels | 5.0Mega:3200(H)×1800(V) |
| CMOS Sensor Size | 5.07mm(H)×3.38mm(V) |
| Light source | 6 pcs LED lamps hight light |
| Sensitivity | 0.2Lux/F1.2 |
| Lens & View angle | 0.5mm F1.2 90 ° |
| HD Video Output Interface | FPD-LinkⅢ |
| Dimension & Weight | 19.5 x 28mm |
| Cable(5Cores High-Speed Line) | Diameter:5mm Length:3meters |
| Flexible pipe lenth | 25cm soft metal pipe,123g |
| Telescopic Pole | |
| Length | Constriction Length:58cm;Unfolded Length:188cm |
| 7 inch DVR with Screen | |
| HD Video Output | HDMI:1920* 1080;1280*720 |
| Video Storage Pixels(16:9) | HDMI:1920* 1080;1280*720 |
| Video Compression Format | H.264 |
| Video compress | AVI |
| HD Digital Video Input Interface | FPD-LinkⅢ |
| Photo Format | JPG 5.0MP:3200(H)×1800(V) |
| Storage External SD card | TF card 1GB-64GB(Optional) |
| Operating system | Windows & Mac OS |
| Port | HDMI, USB2.0 |
| Language | Multiple |
| Current&Voltage | 700mA Video mode;600mA Monitor mode / DC 12V 2A |
| Built-in battery | Rechargeable Li-battery 7500mAh |
| Standby time | ≥8 hours |
| DVR Size&Weight | 177mm x120mm x 20mm /350g |
| Package Contents | 1*7 inch Digital DVR with sunshade; 1* wheel tray camera 1* mini flexible tube camera 1* 2m telescopic pole 1* USB cable 1*AC adapter 1*HDMI Data Cable 1* Aluminium alloy Case |
OEM&ODM available
Free Laser print logo on the product or on the start page of the DVR.
Any of your idea on our product we can help you to design and put it into production.
After-Sale service
All of our products have 1-year warranty.
And we sure the product will be free from maintenance within the warranty period.
